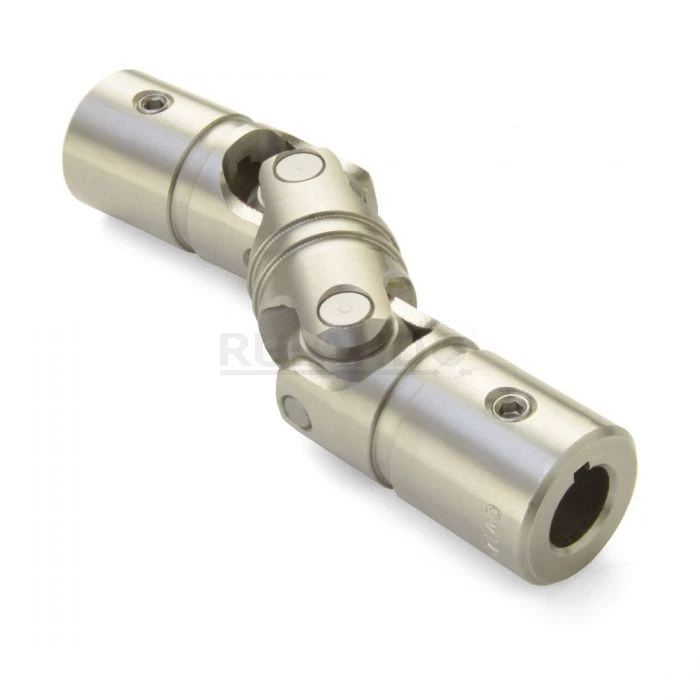

| Item | Universal Joint |
| B1 Max Shaft Penetration | 1.030 in |
| B2 Max Shaft Penetration | 1.030 in |
| Bore (b1) | 0.4375 in |
| Bore Tolerance | +0.0010 in / -0.0000 in |
| Broached Set Screw | #10-32 |
| Center Yoke Length (lc) | 1.375 in |
| Hub Depth (lh) | 1.030 in |
| Joint Outer Diameter (od) | 0.870 in |
| Keyway (k1) | 3/32 in |
| Keyway (k2) | 3/32 in |
| Length (l) | 4.375 in |
| Matching Boot Cover | UBOOT14/22-NI-KIT |
| Material Specification | Yokes: 303 Stainless Steel |
| Max Operating Angle | 90° |
| Peak Torque | 1125 in-lb |
| Rated Torque | 225 in-lb |
| Recommended Lubricant | LUBRIPLATE No. 1200-2 |
| Screw Finish | Bright |
| Screw Material | Stainless Steel |
| Small Bore (b2) | 0.4375 in |
| Yoke Length (ly) | 1.500 in |
| Ship weight (kg) | 0.23 |
| Ship length (cm) | 11.11 |
| Country of Origin | US |
