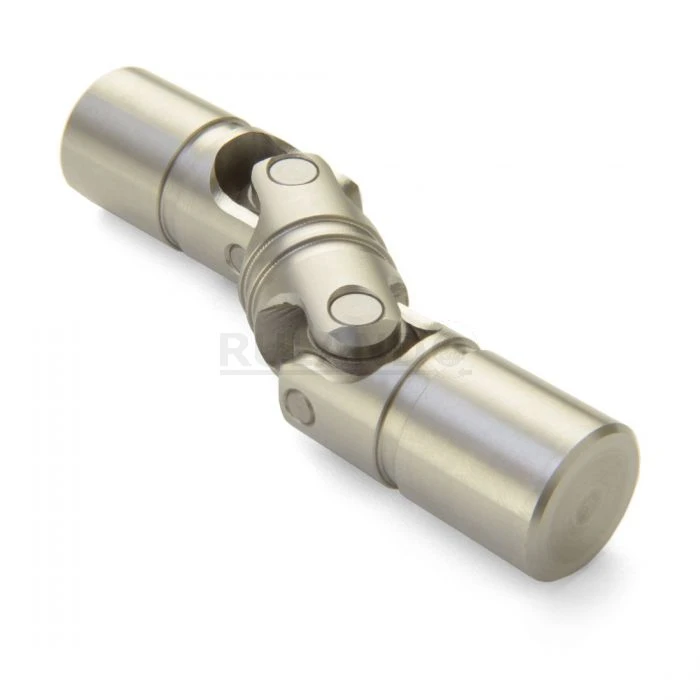

| Item | Universal Joint |
| B1 Max Shaft Penetration | 1.250 in (31.8 mm) |
| B2 Max Shaft Penetration | 1.250 in (31.8 mm) |
| Bore (b1) | No Bore |
| Center Yoke Length (lc) | 1.875 in (47.6 mm) |
| Hub Depth (lh) | 1.250 in (31.8 mm) |
| Joint Outer Diameter (od) | 1.245 in (31.6 mm) |
| Length (l) | 5.625 in (142.9 mm) |
| Matching Boot Cover | UBOOT20/32-NI-KIT |
| Material Specification | Yokes: 303 Stainless Steel |
| Max Blind Bore (inch) | 1.0000 in |
| Max Blind Bore (metric) | 25 mm |
| Max Hex Or Square Bore (inch) | 0.7500 in |
| Max Hex Or Square Bore (metric) | 16 mm |
| Max Operating Angle | 90° |
| Max Round Bore (inch) | 0.750 in |
| Max Round Bore (metric) | 19 mm |
| Max Round Bore W/ Key (inch) | 3/4" Bore, 3/16" Keyway |
| Max Round Bore W/ Key (metric) | 19mm Bore, 6mm Keyway |
| Peak Torque | 3060 in-lb (345.7 Nm) |
| Rated Torque | 612 in-lb (69.1 Nm) |
| Recommended Lubricant | LUBRIPLATE No. 1200-2 |
| Small Bore (b2) | No Bore |
| Yoke Length (ly) | 1.875 in (47.6 mm) |
| Ship weight (kg) | 0.72 |
| Ship length (cm) | 14.29 |
| Country of Origin | US |
