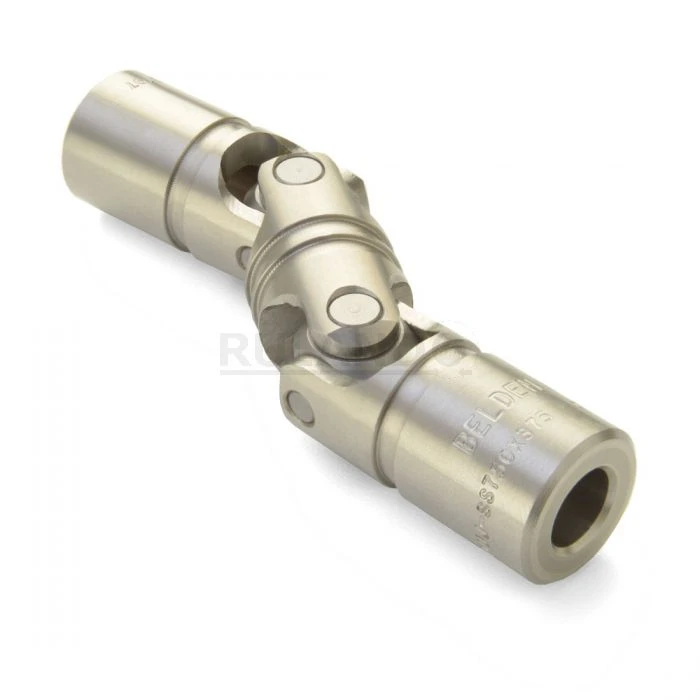

| Item | Universal Joint |
| B1 Max Shaft Penetration | 1.250 in |
| B2 Max Shaft Penetration | 1.250 in |
| Bore (b1) | 0.6250 in |
| Bore Tolerance | +0.0010 in / -0.0000 in |
| Center Yoke Length (lc) | 1.875 in |
| Hub Depth (lh) | 1.250 in |
| Joint Outer Diameter (od) | 1.245 in |
| Length (l) | 5.625 in |
| Matching Boot Cover | UBOOT20/32-NI-KIT |
| Material Specification | Yokes: 303 Stainless Steel |
| Max Operating Angle | 90° |
| Peak Torque | 3060 in-lb |
| Rated Torque | 612 in-lb |
| Recommended Lubricant | LUBRIPLATE No. 1200-2 |
| Small Bore (b2) | 0.5000 in |
| Yoke Length (ly) | 1.875 in |
| Ship length (cm) | 14.29 |
| Country of Origin | US |
