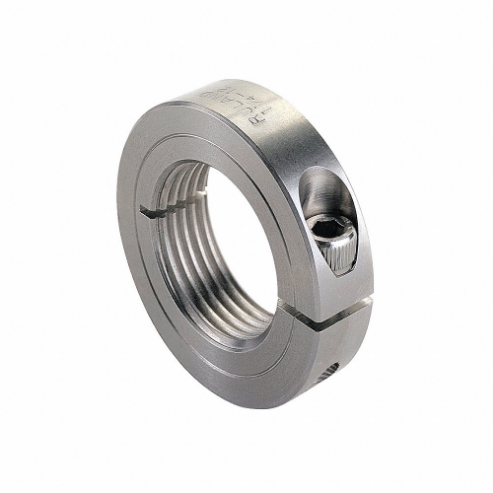

| Item | Shaft Collar |
| Bore Dia. | 2 1/4" |
| Clearance Dia. | 62.4 mm |
| Collar Style | Clamp |
| Dimension Type | Standard |
| Grade | Grade 303 |
| Material | Stainless Steel |
| Number Of Pieces | 1 |
| Operating Temp. Range | -40°F to +350°F |
| Outside Dia. | 57 mm |
| Screw Material | Stainless Steel |
| Width | 15 mm |
| Bore Thread Size | 2 1/4"-12 |
| Bore Type | Threaded |
| Clearance Diameter | 3.5" |
| Collar Construction | 1-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | 303 |
| Collar Outside Diameter | 3 1/4" |
| Collar Width | 3/4" |
| For Shaft Diameter | 2 1/4" |
| Included Screws | (1) Hex Socket Cap Screw |
| Maximum Operating Temperature | 350°F |
| Minimum Operating Temperature | -40°F |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 1.38" |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 304 |
| Screw Seating Torque | 190 lbs.-in. |
| Screw Thread Size | 5/16"-24 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | +0/-0.0005" |
| Standards | ANSI, CONFLICT MINERALS COMPLIANT, ISO 9001:2015, REACH COMPLIANT, ROHS COMPLIANT |
| System Of Measurement | Imperial |
| Thread Type | Right Hand Thread |
| Width Tolerance | +0.003/-0.01" |
| Ship weight (kg) | 0.42 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 1.91 |
| HS code | 8483608000 |
| Country of Origin | US |
| Model | Bore Dia. | Clearance Dia. | Finish | Inside Dia. | Material | Outside Dia. | Screw Material | Screw Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TCL-10-11-F | 5/8"-11 | 1.5" | Black Oxide | 5/8-11 | 1215 Steal Lead Free | 1 5/16" | Alloy Steel | #10-32 | €16.11 | |
| TCL-10-11-SS | 5/8"-11 | 1.5" | Bright | 5/8-11 | 303 Stainless Steel | 1 5/16" | Stainless Steel | #10-32 | €34.09 | |
| TCL-10-18-F | 5/8"-18 | 1.5" | Black Oxide | 5/8-18 | 1215 Steal Lead Free | 1 5/16" | Alloy Steel | #10-32 | €16.36 | |
| TCL-10-18-SS | 5/8"-18 | 1.5" | Bright | 5/8-18 | 303 Stainless Steel | 1 5/16" | Stainless Steel | #10-32 | €35.37 | |
| TCL-12-10-F | 3/4"-10 | 1.808" | Black Oxide | 3/4-10 | 1215 Steal Lead Free | 1.5" | Alloy Steel | 1/4"-28 | €18.90 | |
| TCL-12-10-SS | 3/4"-10 | 1.808" | Bright | 3/4-10 | 303 Stainless Steel | 1.5" | Stainless Steel | 1/4"-28 | €48.67 | |
| TCL-12-16-F | 3/4"-16 | 1.808" | Black Oxide | 3/4-16 | 1215 Steal Lead Free | 1.5" | Alloy Steel | 1/4"-28 | €18.79 |
