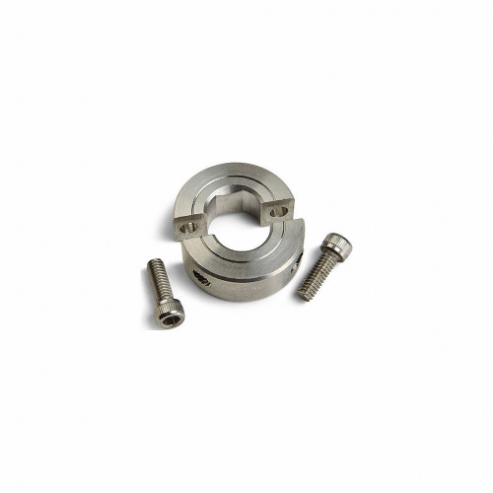

| Item | Shaft Collar |
| Bore Dia. | 5/8" |
| Bore Tolerance | 0.0005" to 0.002" |
| Bore Type | D |
| Clearance Dia. | 1 1/2" |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Width | 0.438" |
| Construction | Two Piece |
| For Shaft Dia. | 5/8" |
| Included Screws | (2) Clamp Screw |
| Inside Height To Flat | 0.59" |
| Max. Operating Temp. | 350°F |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 1.312" |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 12/25" |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Seating Torque | 45 lbs.-in. |
| Screw Thread Size | #10-32 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Width Tolerance | -0.01" to +0.003" |
| Bore Diameter | 5/8" |
| Clearance Diameter | 1.5" |
| Collar Construction | 2-Piece |
| Collar Material Grade | 303 |
| Collar Outside Diameter | 1 5/16" |
| For Shaft Diameter | 5/8" |
| Maximum Operating Temperature | 350°F |
| Minimum Operating Temperature | -40°F |
| Standards | ANSI, ISO 9001:2015 CERTIFIED, REACH COMPLIANT, ROHS3 COMPLIANT |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.33 |
| Ship length (cm) | 1.11 |
| Ship width (cm) | 1.11 |
| Country of Origin | US |
| Model | Bore Dia. | Clearance Dia. | Material | Outside Dia. | Screw Material | Screw Size | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
| SPD-12-F | 3/4" | 1.808" | Black Oxide 1215 Lead Free Steel | 1.5" | Alloy Steel | 1/4"-28 | 1/2" | €95.63 | |
| SPD-12-SS | 3/4" | 1.808" | 303 Stainless Steel | 1.5" | Stainless Steel | 1/4"-28 | 1/2" | €152.52 | |
| SPD-16-F | 1" | 2.032" | Black Oxide 1215 Lead Free Steel | 1.75" | Alloy Steel | 1/4"-28 | 1/2" | €105.20 | |
| SPD-16-SS | 1" | 2.032" | 303 Stainless Steel | 1.75" | Stainless Steel | 1/4"-28 | 1/2" | €176.56 | |
| SPD-4-F | 1/4" | 0.773" | Black Oxide 1215 Lead Free Steel | 5/8" | Alloy Steel | #4-40 | 9/32" | €74.45 | |
| SPD-4-SS | 1/4" | 0.773" | 303 Stainless Steel | 5/8" | Stainless Steel | #4-40 | 9/32" | €60.18 | |
| SPD-8-F | 1/2" | 1.281" | Black Oxide 1215 Lead Free Steel | 1.125" | Alloy Steel | #8-32 | 13/32" | €45.89 |
