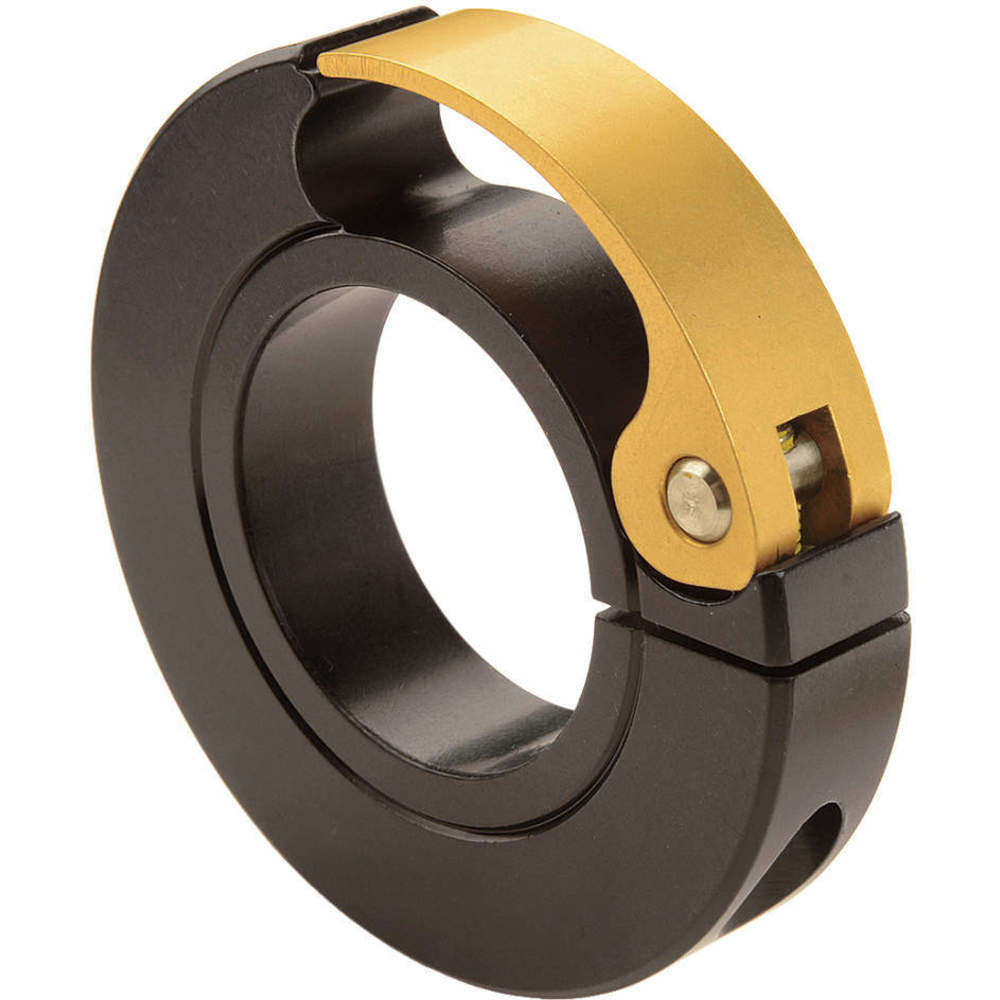

| Item | Shaft Collar |
| Bore Dia. | 1/2" |
| Clearance Dia. | 1 1/2" |
| Dimension Type | Standard |
| Finish | Anodized |
| Grade | Grade 2024 |
| Inside Dia. | 1/2" |
| Material | Aluminum |
| Number Of Pieces | 1 |
| Operating Temp. Range | -40°F to +200°F |
| Outside Dia. | 38 mm |
| Screw Material | Stainless Steel |
| Type | Quick Clamp |
| Width | 10 mm |
| Withstand Temp. | 200°F |
| Bore Diameter | 1/2" |
| Bore Tolerance | +0.002/+0.0005" |
| Bore Type | Round |
| Center To Lever Top | 0.75" |
| Collar Construction | 1-Piece |
| Collar Material | Aluminum |
| Collar Material Finish | Bright |
| Collar Material Grade | 6061 |
| Collar Outside Diameter | 1 1/2" |
| Collar Width | 13/32" |
| For Shaft Diameter | 1/2" |
| Handle Color | Gold |
| Handle Material | Aluminum |
| Handle Material Finish | Anodized |
| Included Screws | (1) Hex Socket Cap Screw |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | -40°F |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 304 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | +0/-0.0005" |
| Standards | ANSI, CONFLICT MINERALS COMPLIANT, ISO 9001:2015, REACH COMPLIANT, ROHS COMPLIANT |
| System Of Measurement | Imperial |
| Width Tolerance | +0.003/-0.01" |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 0.99 |
| HS code | 8483608000 |
| Country of Origin | US |
| Model | Bore Dia. | Cap Screw Size | Clearance Dia. | Inside Dia. | Item | Material | Outside Dia. | Screw Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| QCL-6-A | 3/8" | M3 | 1.5" | 3/8" | Shaft Collar | 2024 Aluminum | 38mm | Stainless Steel | €94.76 | |
| QCL-10-A | 5/8" | M3 | 1.5" | 5/8" | Shaft Collar | 2024 Aluminum | 38mm | Stainless Steel | €63.14 | |
| QCL-12-A | 3/4" | M4 | 2" | 3/4" | Shaft Collar | 2024 Aluminum | 50mm | Stainless Steel | €78.30 | |
| QCL-16-A | 1" | M4 | 2" | 1" | Shaft Collar | 2024 Aluminum | 50mm | Stainless Steel | €80.82 | |
| QCL-18-A | 1.125" | M4 | 2" | 1.125" | Shaft Collar | 2024 Aluminum | 50mm | Stainless Steel | €68.10 | |
| QCL-20-A | 1.25" | M5 | 3" | 1.25" | Shaft Collar | 2024 Aluminum | 75mm | Stainless Steel | €122.76 | |
| QCL-22-A | 1.375" | M5 | 3" | 1.375" | Shaft Collar | 2024 Aluminum | 75mm | Stainless Steel | €108.32 |
