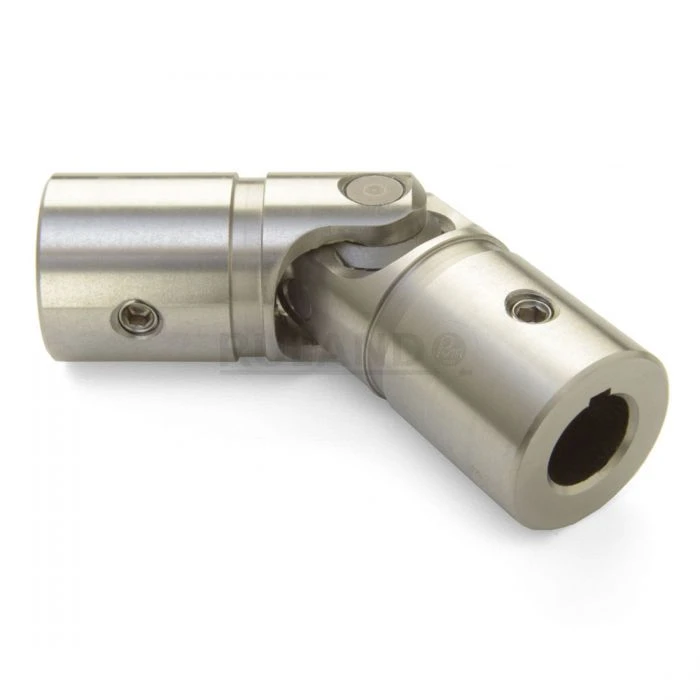

| Item | Universal Joint |
| B1 Max Shaft Penetration | 20.9 mm |
| B2 Max Shaft Penetration | 20.9 mm |
| Bore (b1) | 8 mm |
| Bore Tolerance | +0.015 mm / -0.000 mm |
| Broached Set Screw | M3 |
| Hub Depth (lh) | 20.9 mm |
| Joint Outer Diameter (od) | 15.7 mm |
| Keyway (k1) | 2 x 9 mm |
| Keyway (k2) | 2 x 9 mm |
| Length (l) | 57.2 mm |
| Material Specification | Yokes: 303 Stainless Steel |
| Max Operating Angle | 45° |
| Peak Torque | 53.7 Nm |
| Rated Torque | 10.7 Nm |
| Recommended Lubricant | LUBRIPLATE No. 1200-2 |
| Screw Material | Stainless Steel |
| Small Bore (b2) | 8 mm |
| Yoke Length (ly) | 28.6 mm |
| Ship weight (kg) | 0.06 |
| Ship length (cm) | 5.72 |
| Country of Origin | US |
