| 20 | $66.28 |
| 200 | Request Quote |

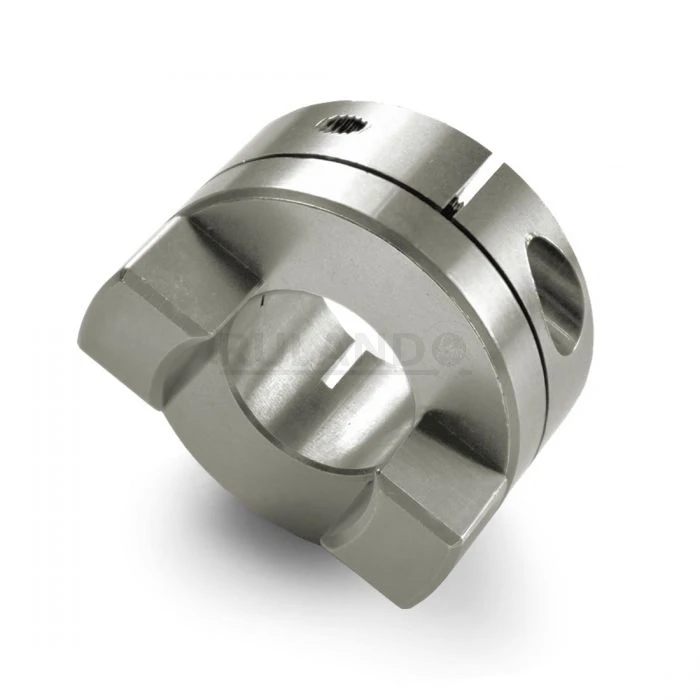

| Angular Misalignment | 0.5° |
| Axial Motion | 0.004 in (0.10 mm) |
| B1 Max Shaft Penetration | 9.7 mm |
| Balanced Design | Yes |
| Bore (b1) | 8 mm |
| Bore Tolerance | +0.03 mm / -0.00 mm |
| Finish | Bright |
| Finish Specification | Bright, No Plating |
| Forged Clamp Screw | M2.5 |
| Full Bearing Support Required? | Yes |
| Hex Wrench Size | 2.0 mm |
| Hub Width (lh) | 9.65 mm |
| Length (l) | 25.4 mm |
| Material Specification | Type 303 Austenitic, Non-Magnetic Bar |
| Max Parallel Misalignment | 0.075 in (1.91 mm) |
| Maximum Speed | 4,500 RPM |
| Mechanical Fuse? | Yes |
| Moment Of Inertia | 9.558 x 10 |
| Number Of Screws | 1 ea |
| Outer Diameter (od) | 19.1 mm |
| Parallel Misalignment | 0.008 in (0.20 mm) |
| Recommended Inserts | OD12/19-AT |
| Recommended Shaft Tolerance | +0.000 mm / -0.013 mm |
| Screw Finish | Bright |
| Screw Material | 18-8 300 Series Stainless Steel |
| Seating Torque | 0.73 Nm |
| Temperature | Acetal Disk -10°F to 150°F (-23°C to 65°) |
| Torque Specifications | Torque ratings vary with insert selection |
| Zero-backlash? | Yes |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 1.91 |
| Country of Origin | US |
