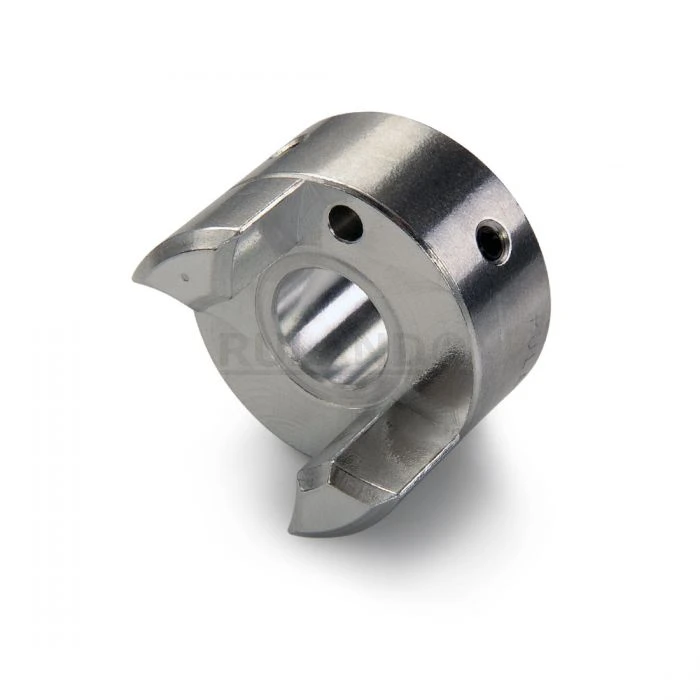

| Item | Jaw Coupling Hub |
| 20 | $17.00 |
| 200 | Request Quote |
| B1 Max Shaft Penetration | 9.8 mm |
| Balanced Design | Yes |
| Bore (b1) | 7 mm |
| Bore Tolerance | +0.03 mm / -0.00 mm |
| Fail Safe? | Yes |
| Finish | Bright |
| Finish Specification | Bright, No Plating |
| Forged Set Screw | M3 |
| Full Bearing Support Required? | Yes |
| Hex Wrench Size | 1.5 mm |
| Hub Width (lh) | 9.78 mm |
| Length (l) | 1.070 in (27.2 mm) |
| Material Specification | 2024-T351 Aluminum Bar |
| Maximum Speed | 8,000 RPM |
| Misalignment | Misalignment ratings vary with insert selection |
| Moment Of Inertia | 4.171 x 10 |
| Number Of Screws | 1 ea |
| Outer Diameter (od) | 0.750 in (19.1 mm) |
| Recommended Gap Between Hubs | 0.020 in (0.50 mm) |
| Recommended Inserts | JD12/19-98R |
| Recommended Shaft Tolerance | +0.000 mm / -0.013 mm |
| Screw Finish | Black Oxide |
| Screw Material | Alloy Steel |
| Seating Torque | 0.92 Nm |
| Temperature | -10°F to 180°F (-23°C to 82°C) |
| Torque Specifications | Torque ratings vary with insert selection |
| Zero-backlash? | Yes |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 2.72 |
| Ship width (cm) | 1.91 |
| Country of Origin | US |
