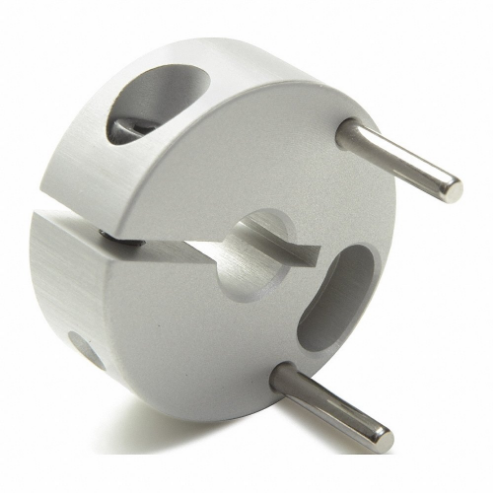

| Item | Hub |
| Angular Misalignment | 1° |
| Application | Encoders, Servo, Tachometers |
| Axial Motion | 0.3 mm |
| Bore Dia. | 6 mm |
| Bore Dia. Tolerance | 0.01 mm to 0.04 mm |
| Bore Type | Round Bore |
| Coupling Outside Dia. | 19 mm |
| Coupling Size | MCPRD19 |
| Fastener Tightening Torque | 0.4 N-m |
| Features | Light Weight |
| Full Bearing Support Required | Yes |
| Hub Material | Aluminum |
| Hub Material Finish | Clear Anodized |
| Hub Material Grade | 6082 |
| Hub Type | Double Insert |
| Hub Width | 5.6 mm |
| Included Screws | Clamp Screw |
| Max. Operating Temp. | 80°C |
| Max. Speed | 25000 RPM |
| Maximum Shaft Penetration | 9.9 mm |
| Min. Operating Temp. | -30°C |
| Number Of Locking Screws | 1 |
| Overall Coupling Length | 20 mm |
| Parallel Misalignment | 0.4 mm |
| Peak Torque | 1.4 N-m |
| Rated Torque | 0.6 N-m |
| Screw Location From Center | 6.4 mm |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Thread Size | #2-56 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Metric |
| Torsional Stiffness | 0.56 N-m/deg. |
| Zero Backlash | Yes |
| Bore Diameter | 6 mm |
| Bore Diameter Tolerance | +0.04/+0.01 mm |
| Compatible Center Element Manufacturer Part Number | CPFRG12/19-AT |
| Coupling Outside Diameter | 19 mm |
| Coupling Overall Length | 20 mm |
| Maximum Operating Temperature | 80°C |
| Maximum Speed | 25000 RPM |
| Minimum Operating Temperature | -30°C |
| Standards | CONFLICT MINERALS COMPLIANT, DIN 912 12.9, ISO 9001:2015, REACH COMPLIANT, ROHS3 COMPLIANT |
| Weight | 0.007 lbs. |
| Ship height (cm) | 2 |
| Ship length (cm) | 2.01 |
| Ship width (cm) | 2 |
| Country of Origin | DE |
| Model | Price | |
|---|---|---|
| MCPRD19-10-A | €27.01 | |
| MCPRD19-8-A | €27.01 | |
| MCPRD19-3-A | €27.01 | |
| MCPRD19-5-A | €27.01 | |
| MCPRD19-4-A | €27.01 | |
| MCPRD25-6-A | €24.31 | |
| MCPRD25-10-A | €24.31 |
