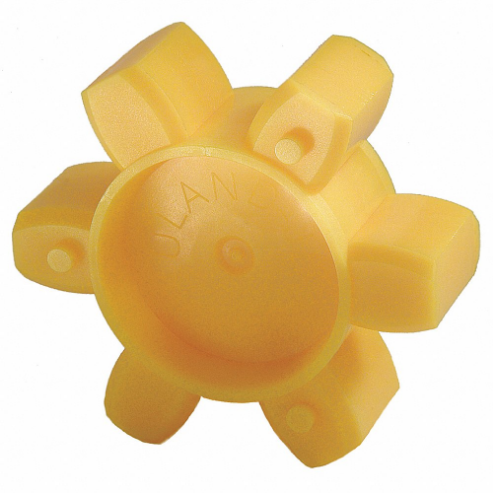

| Item | Jaw Coupling Insert |
| Color | Yellow |
| Material | Urethane |
| Max. Axial Misalignment | 0.05" |
| Max. Parallel Misalignment | 0.005" |
| Max. Speed | 8000 RPM |
| Serviceable Temp. Range (f) | -10°F to 180°F |
| Torque | 285 lbs.-in. , 570 lbs.-in. |
| Torsional Stiffness (deg./in.-lbs.) | 0.004 deg./lbs.-in. |
| Type | Urethane Spider |
| Width | 3/4" |
| Angular Misalignment | 0.8° |
| Axial Motion | 0.05" |
| Compatible Hub Manufacturer Part Number | JC36, JCC36, JS36, JSC36, MJC57, MJCC57, MJS57, MJSC57 |
| Coupling Size | JC36, JCC36, JS36, JSC36, MJC57, MJCC57, MJS57, MJSC57 |
| Deform Torque | 570 lbs.-in. |
| Durometer Hardness | 92A |
| Fail Safe | Yes |
| For Misalignment Type | Angular, Axial, Parallel |
| Full Bearing Support Required | Yes |
| Horsepower @ 100 Rpm | 0.9044 hp |
| Maximum Operating Temperature | 180°F |
| Maximum Speed | 8000 RPM |
| Minimum Operating Temperature | -10°F |
| Outside Diameter | 2 1/4" |
| Parallel Misalignment | 0.005" |
| Rated Torque | 285 lbs.-in. |
| Resistance Properties | Chemical Resistant, Oil Resistant |
| Spider Material | Polyurethane |
| Spider Type | Solid Center Spider |
| Spider Width | 4/5" |
| Standards | CONFLICT MINERALS COMPLIANT, ISO 9001:2015, REACH COMPLIANT, ROHS3 COMPLIANT |
| System Of Measurement | Imperial |
| Torsional Stiffness | 250 in.-lbs./deg. |
| Zero Backlash | Yes |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 6.6 |
| HS code | 3926909980 |
| Country of Origin | US |
| Product | Model | Color | Coupling Size | Item | Max. Angular Misalignment | Max. Axial Misalignment (in.) | Max. Parallel Misalignment (in.) | Max. Torque | Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JD10/15-92Y | Yellow | JC10/MJC15 | Jaw Coupling Insert | 0.9 | 0.02 | 0.004 | 10 In.Lbs. | - | €19.10 | |
 |
JD10/15-85B | Blue | JC10/MJC15 | Jaw Coupling Insert | 1 | 0.02 | 0.005 | 4.8 In.Lbs. | - | €23.97 | |
 |
JD10/15-98R | Red | JC10/MJC15 | Jaw Coupling Insert | 0.8 | 0.02 | 0.002 | 16 In.Lbs. | - | €19.26 | |
|
JD12/19-92Y | Yellow | JC12/MJC19 | Jaw Coupling Insert | 0.9 | 0.02 | 0.004 | 18 In.Lbs. | - | €24.24 | |
|
JD12/19-98R | Red | JC12/MJC19 | Jaw Coupling Insert | 0.8 | 0.02 | 0.003 | 30 In.Lbs. | - | €24.31 | |
|
JD16/25-92Y | Yellow | JC16/JCC16/MJC25/MJCC25 | Jaw Coupling Insert | 0.9 | 0.03 | 0.005 | 58 In.Lbs. | - | €26.52 | |
|
JD16/25-85B | Blue | JC16/JCC16/MJC25/MJCC25 | Jaw Coupling Insert | 1 | 0.03 | 0.006 | 30 In.Lbs. | - | €35.72 |
