RULAND MANUFACTURING CPRDK23-12-A Controlflex Coupling Hub, 1 Degree Angular Misalignment, 0.03 Inch Axial Motion | CT9HDC 805K55

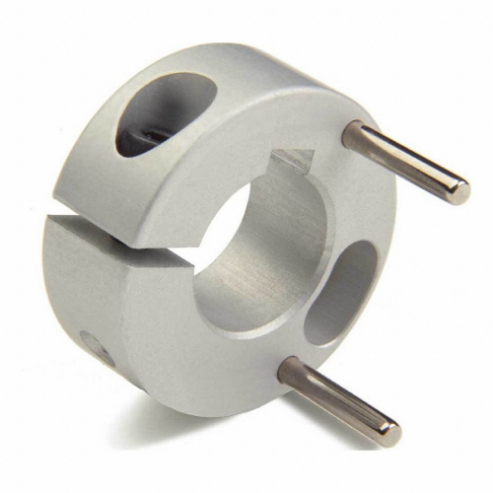

RULAND MANUFACTURING CPRDK23-12-A Controlflex Coupling Hub, 1 Degree Angular Misalignment, 0.03 Inch Axial Motion

Item: CT9HDCModel: CPRDK23-12-ACross Ref: 805K55
In Stock

Get it by Thursday, Jun 19

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€41.04 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemHub
Angular Misalignment
ApplicationEncoders, Servo, Tachometers
Axial Motion0.03"
Bore Dia.3/4"
Bore Dia. Tolerance0.001" to 0.003"
Bore TypeRound Bore With Keyway
Coupling Outside Dia.1 1/2"
Coupling SizeCPRD23
Fastener Tightening Torque3 N-m
FeaturesLight Weight
Full Bearing Support RequiredYes
Hub MaterialAluminum
Hub Material FinishClear Anodized
Hub Material Grade6082
Hub TypeDouble Insert
Hub Width2/5"
Included ScrewsClamp Screw
Keyway Depth0.094"
Keyway Width0.188"
Max. Operating Temp.175°F
Max. Speed15000 RPM
Maximum Shaft Penetration0.7"
Min. Operating Temp.-22°F
Number Of Locking Screws1
Overall Coupling Length1.496"
Parallel Misalignment1/25"
Peak Torque53.1 lbs.-in.
Rated Torque35.4 lbs.-in.
Screw Location From Center0.49"
Screw MaterialAlloy Steel
Screw Material FinishBlack Oxide
Screw Thread SizeM4
Shaft Locking TypeClamp On
System Of MeasurementImperial
Torsional Stiffness30.1 lbs.-in./deg.
Zero BacklashYes
Bore Diameter3/4"
Bore Diameter Tolerance+0.003/+0.001"
Compatible Center Element Manufacturer Part NumberCPFRG23/37-AT
Coupling Outside Diameter1.5"
Coupling Overall Length1.496"
Maximum Operating Temperature175°F
Maximum Speed15000 RPM
Minimum Operating Temperature-22°F
StandardsCONFLICT MINERALS COMPLIANT, DIN 912 12.9, ISO 9001:2015, REACH COMPLIANT, ROHS3 COMPLIANT
Weight0.06 lbs.

Shipping Info:

Ship weight (kg) 0.03
Ship height (cm)4.06
Ship length (cm)3.81
Ship width (cm)4.06
Country of OriginDE
