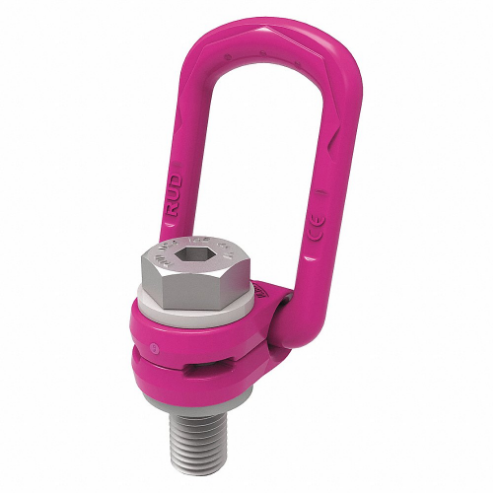

| Item | Hoist Ring |
| Bail Dia. | 9.53 mm |
| Bail Inside Length | 41.28 mm |
| Bail Inside Width | 34.93 mm |
| Color | Pink |
| Dimension A | 30.16 mm |
| Dimension B | 53.98 mm |
| Dimension C | 33.73 mm |
| Dimension D | 23.81 mm |
| Dimension E | 38.89 mm |
| Dimension F | 9.92 mm |
| Finish | Powder Coated |
| Hoist Ring Type | Pivot, Swivel |
| Includes | Bolt |
| Installation Torque | 60.06 N-m |
| Load Capacity | 898.11 Kg |
| Material | Alloy Steel |
| Max. Operating Temp. | 350°C |
| Mfr. Series | VLBG-PLUS Series |
| Min. Operating Temp. | -40°C |
| Mounting Style | Screw On |
| Nominal Size | M10 |
| Nominal Wll (kg) | 900 Kg |
| Operation | Lifting |
| Overall Length | 98.43 mm |
| Overall Width | 53.98 mm |
| Pitch | 75 mm |
| Pivot | 180° |
| Swivel Angle | 360° |
| System Of Measurement | Metric |
| Thread Projection | 15.88 mm |
| Thread Size | M10 x 0.9 |
| Usable Thread Length | 15.88 mm |
| Bail Thickness | 3/8" |
| Maximum Operating Temperature | 662°F |
| Minimum Installation Torque | 44.3 lbs.-ft. |
| Minimum Operating Temperature | -40°F |
| Mount Type | Screw On |
| Pivot Angle | 180° |
| Rotate Angle | 360° |
| Series | VLBG-PLUS |
| Standards | DGUV TEST |
| Working Load Limit | 1980 lbs. |
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9.84 |
| Ship width (cm) | 5.4 |
| Country of Origin | DE |
