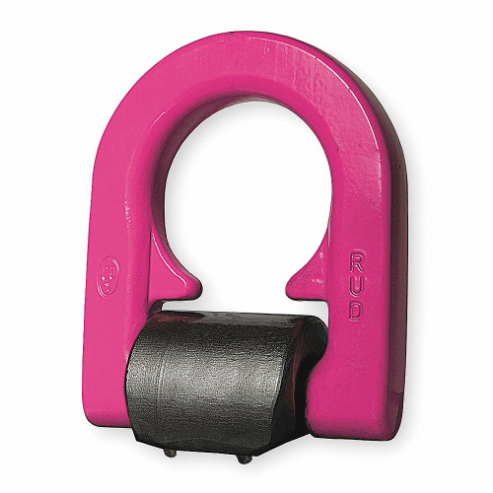

| Item | Hoist Ring |
| Bail Dia. | 1 3/64" |
| Bail Inside Length | 2 5/8" |
| Bail Inside Width | 2 5/8" |
| Color | Pink |
| Finish | Powder Coated |
| Hoist Ring Type | Pivot |
| Load Capacity | 22040 lbs. |
| Material | Steel |
| Max. Operating Temp. | 752°F |
| Mfr. Series | VLBS Series |
| Min. Operating Temp. | -40°F |
| Mounting Style | Weld On |
| Nominal Wll (kg) | 10000 Kg |
| Operation | Lifting |
| Overall Length | 5 1/8" |
| Overall Width | 3" |
| Pitch | 126 mm , 4.96" |
| Pivot | 180° |
| Swivel Angle | 0° |
| System Of Measurement | Imperial |
| Thread Size | Not Applicable |
| Bail Thickness | 1 3/64" |
| Maximum Operating Temperature | 752°F |
| Minimum Operating Temperature | -40°F |
| Mount Type | Weld On |
| Pivot Angle | 180° |
| Series | VLBS Series |
| Standards | DGUV TEST |
| Working Load Limit | 22040 lbs. |
| Ship weight (kg) | 2.7 |
| Ship height (cm) | 14.48 |
| Ship length (cm) | 13.02 |
| Ship width (cm) | 7.62 |
| HS code | 7318190000 |
| Country of Origin | DE |
