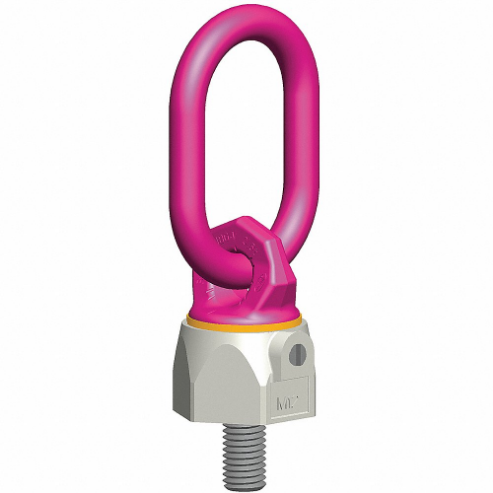

| Item | Hoist Ring |
| Bail Dia. | 1/2" |
| Bail Inside Length | 2 1/8" |
| Bail Inside Width | 1 3/8" |
| Color | Pink |
| Dimension B | 2.187" |
| Dimension C | 1 3/8" |
| Dimension E | 5 5/16" |
| Dimension F | 1 1/8" |
| Finish | Powder Coated |
| Hoist Ring Type | Pivot, Swivel |
| Installation Torque | 51.6 lbs.-ft. |
| Load Capacity | 4400 lbs. |
| Material | Steel |
| Max. Operating Temp. | 662°F |
| Mfr. Series | VWBG-V Series |
| Min. Operating Temp. | -40°F |
| Mounting Style | Screw On |
| Nominal Size | 3/4"-10 |
| Nominal Wll (kg) | 2000 Kg |
| Operation | Lifting |
| Overall Length | 2 1/2" |
| Overall Width | 2 1/8" |
| Pitch | 137 mm , 5.39" |
| Pivot | 230° |
| Swivel Angle | 360° |
| System Of Measurement | Imperial |
| Thread Projection | 1 1/8" |
| Thread Size | 3/4"-10 |
| Thread Type | Coarse |
| Usable Thread Length | 1 1/8" |
| Bail Thickness | 1/2" |
| Maximum Operating Temperature | 662°F |
| Minimum Installation Torque | 51.6 lbs.-ft. |
| Minimum Operating Temperature | -40°F |
| Mount Type | Screw On |
| Pivot Angle | 230° |
| Rotate Angle | 360° |
| Series | VWBG-V Series |
| Standards | DGUV-R 109-017:2020-12, DIN EN 1677-1:2009-03, DIN EN 1677-4:2009-03, DIN EN ISO 12100:2011-03 |
| Working Load Limit | 4400 lbs. |
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 16.76 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 5.4 |
| HS code | 7326908588 |
| Country of Origin | DE |
