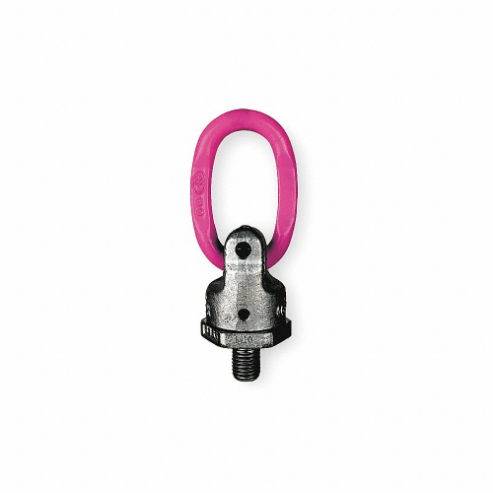

RUD CHAIN 7989906 Hoist Ring, 180 Pivot, 11000 Lbs. Load Capacity, 360 Swivel Angle, Powder Coated
Get it by Tuesday, Jun 17
€611.15 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hoist Ring |
| Bail Dia. | 13/16" |
| Bail Inside Length | 5 1/8" |
| Bail Inside Width | 2 3/8" |
| Color | Pink |
| Finish | Powder Coated |
| Hoist Ring Type | Pivot, Swivel |
| Installation Torque | 166 lbs.-ft. |
| Load Capacity | 13400 lbs. |
| Material | Steel |
| Max. Operating Temp. | 752°F |
| Mfr. Series | PP-B Series |
| Min. Operating Temp. | -40°F |
| Mounting Style | Screw On |
| Operation | Lifting |
| Overall Length | 10 1/2" |
| Overall Width | 3 3/4" |
| Pivot | 230° |
| Swivel Angle | 360° |
| System Of Measurement | Imperial |
| Thread Projection | 1 3/4" |
| Thread Size | 1 1/2"-7 |
| Usable Thread Length | 1 3/4" |
| Bail Thickness | 13/16" |
| Maximum Operating Temperature | 752°F |
| Minimum Installation Torque | 166 lbs.-ft. |
| Minimum Operating Temperature | -40°F |
| Mount Type | Screw On |
| Pivot Angle | 230° |
| Rotate Angle | 360° |
| Series | PP-B Series |
| Standards | CE CERTIFIED, COMPLIES WITH THE MACHINERY DIRECTIVES 2006/42/EG, DGUV TEST OA 1451017 |
| Working Load Limit | 13400 lbs. |
| Ship weight (kg) | 4.46 |
| Ship height (cm) | 16.76 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 9.53 |
| HS code | 7326908588 |
| Country of Origin | DE |
