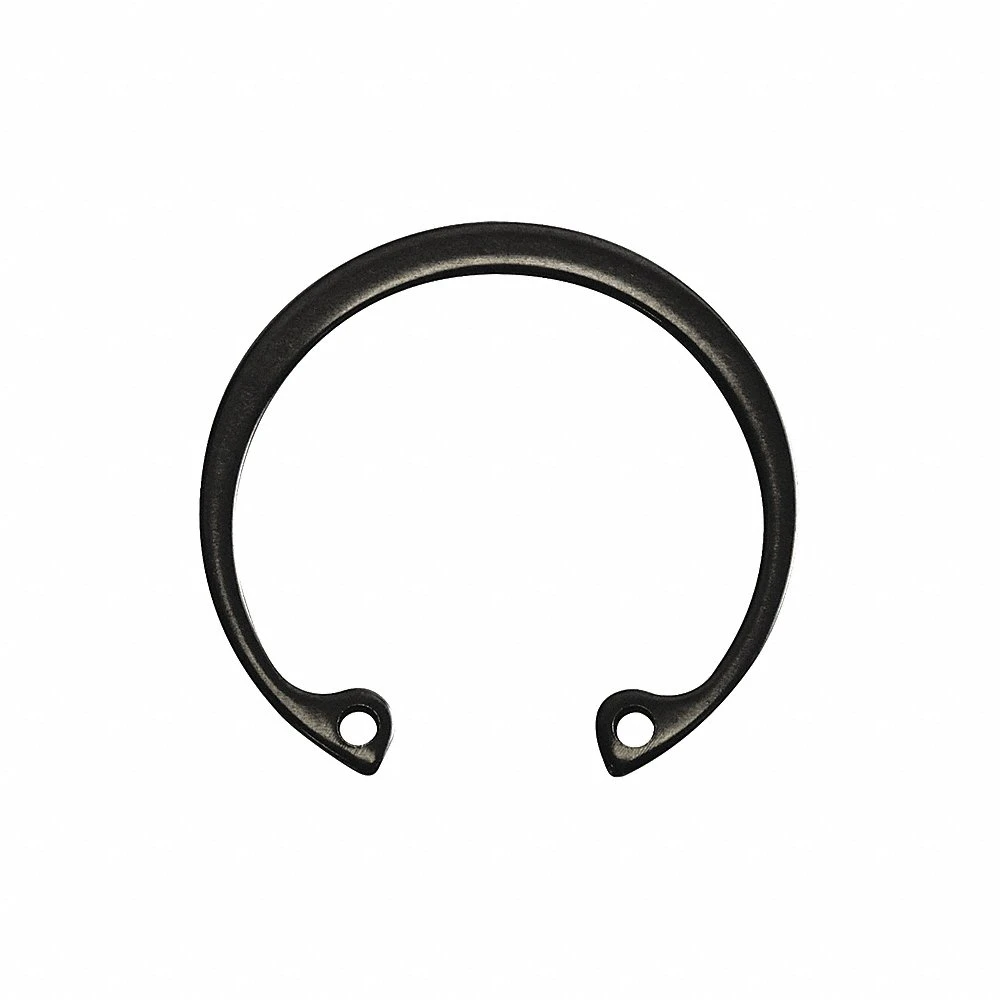

| Item | Housing |
| Assembly Type | Axially Assembled |
| Clearance Dia. Compressed In Housing | 1.35" |
| Clearance Dia. Released In Groove | 1.46" |
| Clearance Dia. Type | Compressed, Released |
| Finish | Plain |
| Fits Groove Depth | 0.056" |
| Fits Groove Dia. | 1.962" |
| Fits Groove Width | 0.068" |
| For Housing Dia. | 1.85" |
| For Use With | Housing |
| Free Outside Dia. | 2.054" |
| Free Outside Dia. Tolerance | +0.025" to +0.035" |
| Gap Width | 0.36" |
| Grade | PH 15-7, PH 17-7 |
| Groove Dia. Tolerance | -0.005" to +0.005" |
| Groove Width Tolerance | 0" to +0.004" |
| Hardness | Rockwell 44-51 HRC |
| Hole Dia. | 0.093" |
| Hole Dia. Tolerance | -0.002" to +0.015" |
| Installation Method | Snap-Ring Pliers |
| Load Capacity | 3000 lbs. |
| Lug Height | 0.234" |
| Lug Height Tolerance | -0.005" to +0.005" |
| Material | Stainless Steel |
| Max. Allowable Corner Chamfer | 0.05" |
| Max. Allowable Corner Radius | 0.064" |
| Max. Section Size | 0.17" |
| Max. Section Size Tolerance | -0.007" to +0.007" |
| Min. Section Size | 0.085" |
| Min. Section Size Tolerance | -0.007" to +0.007" |
| Retaining Ring Style | Circlip |
| System Of Measurement | Imperial |
| Tensile Strength | Not Rated |
| Thickness | 0.062" |
| Thickness Tolerance | -0.003" to +0.003" |
| Thrust Load Groove | 8750 lbs. |
| Thrust Load Ring | 16443 lbs. |
| Type | Internal |
| Clearance Diameter | 1.46" |
| Clearance Diameter Type | Released |
| Dimensional Standards | MIL-DTL-21248D |
| Fits Groove Diameter | 1.967" |
| For Bore Diameter | 2 3/64" |
| Free Outside Diameter | 2.089" |
| Groove Diameter Tolerance | +/-0.005" |
| Material Grade/class | 18-8 |
| Product Type | Internal |
| Ring Sub-type | Standard |
| Ring Type | Housing Ring |
| Ship height (cm) | 0.16 |
| Ship length (cm) | 5.22 |
| Ship width (cm) | 5.22 |
| Country of Origin | US |
