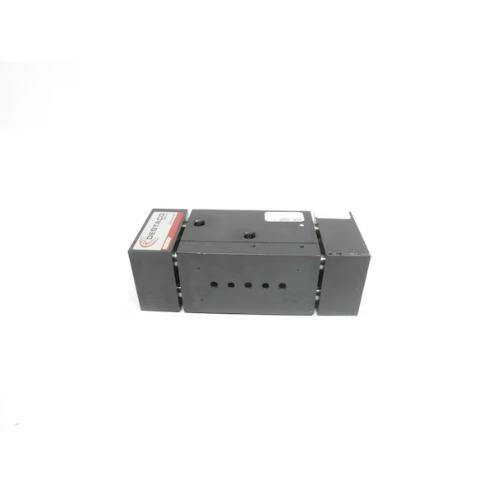

DESTACO RPW-500M-2 Parallel Gripper, Parallel, 234 mm Open Width, 170 mm Closed Width, Double
Get it by Monday, Jun 16
€1,183.10 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Gripper |
| Action Type | Double |
| Bore Size | 31.8 mm |
| Closed Width | 170 mm |
| Dimension A | 101.6 mm |
| Dimension B | 31.3 mm |
| Dimension C | 3.3 mm |
| Extended Stroke | Yes |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Height | 66.4 mm |
| Max. Pressure | 100 psi |
| Mfr. Series | RPW Series |
| Opening Width | 234 mm |
| Opening/closing Stroke | 63.5 mm |
| Operating Temp. Range | -30°F to +180°F |
| Port Size | g1/8" |
| Seal Material | Buna N |
| Size | 500 |
| Total Grip Force | 667N |
| Type | Parallel |
| Air Inlet Type | G |
| Body Material | Aluminum |
| Finger Material | Carbon Steel |
| Maximum Operating Pressure | 100 psi |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Pressure | 40 psi |
| Minimum Operating Temperature | -35°C |
| Open Width | 234 mm |
| Overall Height | 66.4 mm |
| Overall Length | 66.4 mm |
| Overall Width | 170 mm |
| Series | RPW Series |
| Stroke Length | 63.5 mm |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 6.64 |
| Ship length (cm) | 6.64 |
| Ship width (cm) | 17 |
| Country of Origin | US |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
RPW-625-2 | Gripper | €4,892.87 | |
 |
RPW-750 | Gripper | €6,575.59 | |
 |
RPW-250 | Gripper | €2,804.43 | |
|
RPW-625-1 | Gripper | €4,053.52 | |
|
RPW-375-106 | Gear Cover | €68.21 | |
|
RPW-375-2-V | Gripper | €1,150.71 | RFQ
|
|
RPW-375M-2-NS-V | Gripper | €1,207.66 | RFQ
|
