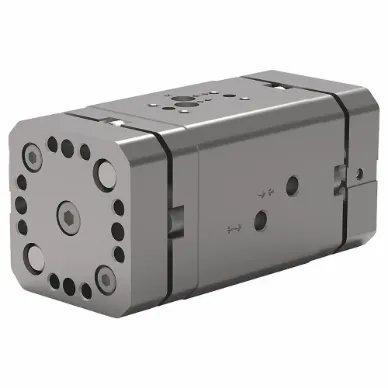

DESTACO DPW-250M-1 Parallel Gripper, Parallel, 98 mm Open Width, 79 mm Closed Width, Double, DPW
Get it by Monday, Jun 16
€638.16 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Gripper |
| Action Type | Double |
| Bore Size | 15.9 mm |
| Closed Width | 79 mm |
| Dimension A | 5.8 mm |
| Dimension B | 54.4 mm |
| Dimension C | 79 mm |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Height | 37.6 mm |
| Max. Pressure | 100 psi |
| Mfr. Series | DPW |
| Opening Width | 98 mm |
| Opening/closing Stroke | 19.1 mm |
| Operating Temp. Range | -30°F to +180°F |
| Port Size | M3 |
| Seal Material | Buna N |
| Size | 250m |
| Total Grip Force | 222N |
| Type | Parallel |
| Body Material | Aluminum |
| Finger Material | Carbon Steel |
| Maximum Operating Pressure | 100 psi |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Pressure | 21.7 psi |
| Minimum Operating Temperature | -35°C |
| Open Width | 98 mm |
| Overall Height | 37.6 mm |
| Overall Length | 37.6 mm |
| Overall Width | 79 mm |
| Series | DPW Series |
| Stroke Length | 19.1 mm |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 3.76 |
| Ship length (cm) | 3.76 |
| Ship width (cm) | 7.9 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
DPW-375M-2-W-V | €1,731.09 | RFQ
|
|
DPW-500M-1-W | €1,044.56 | RFQ
|
|
DPW-500M-2-W | €1,090.87 | RFQ
|
 |
DPW-375M-2 | €803.49 | |
 |
DPW-250M-2 | €666.56 | |
 |
DPW-500M-1 | €1,446.72 | |
 |
DPW-375M-1 | €757.15 |
