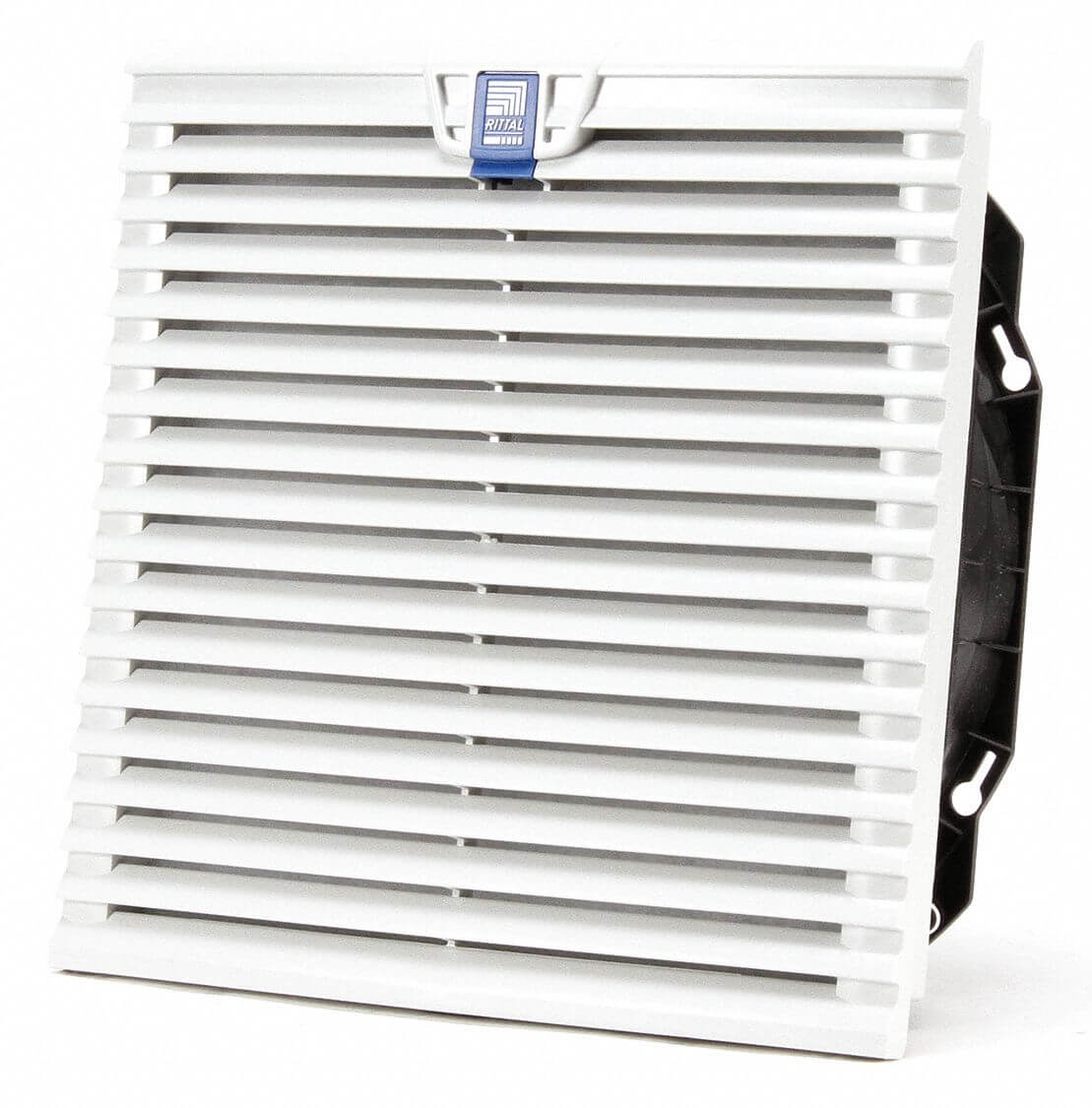

RITTAL 3244140 Axial Fan 400/460vac 12-5/7inh 12-5/7 Inch Width
Get it by Tuesday, Jun 17
€605.66 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Axial Fan |
| Bearing Type | Ball |
| Blade Material | Steel |
| Cfm @ 0.000-in. Sp | 424 CFM |
| Depth | 5 5/8" |
| Electrical Connection | Terminals |
| Electrical Connection - Fans | Terminals |
| Environmental Applications | Equipment Cooling |
| Frequency | 50/60 Hz |
| Height | 12.714" |
| Housing Material | PBT |
| Max. Ambient Temp. | 131°F |
| Motor Insulation | Class B |
| Motor Type | Rotary Current |
| Mounting Eye O.c. | 11 1/2" |
| Mounting Position | Horizontal/Vertical |
| Phase | 3 |
| Requires | Hardwire |
| Shape | Square |
| Sound Level | 65 dBA, 68 dBA |
| Thermal Protection | Impedance |
| Wattage | 93/140 W |
| Width | 12.714" |
| Amps | 0.17/0.21A |
| Fan Shape | Square |
| Hz | 50/60 Hz |
| Ip Rating | IP54 |
| Standards | UL AND CUL RECOGNIZED, CE, TYPE 12 RATED, IP 54 (STANDARD), CURUS, UR, CSA, CCC, EN 60-529/09.2000 |
| Voltage | 400/460V AC |
| Watts | 93/140 W |
| Ship weight (kg) | 4.06 |
| Ship height (cm) | 18.03 |
| Ship length (cm) | 33.78 |
| Ship width (cm) | 34.04 |
| HS code | 8414596090 |
| Country of Origin | DE |
| Product | Model | Amps | Blade Material | Cfm @ 0.000-in. Sp | Dba | Depth | Electrical Connections | Height | Housing Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9969937 | 0.25/0.21 | Polycarbonate | 2x102 | 37/41 | 1.75" | Pre wired | 11 3/7" | Black Painted | €452.21 | |
|
9969939 | 0.12/0.1 | Polycarbonate | 2x102 | 37/41 | 1.75" | Pre wired | 11 3/7" | Black Painted | €452.21 | |
 |
3237110 | 0.12/0.1 | Steel | 15 | 38/43 | 2-1/3" | Terminals | 4 3/5" | Light Gray (RAL 7035) | €158.46 | |
 |
3238110 | 0.24/0.22 | Steel | 39 | 46/49 | 3" | Terminals | 5 5/6" | Light Gray (RAL 7035) | €255.24 | |
 |
3239110 | 0.24/0.22 | Steel | 71 | 46/49 | 4.5" | Terminals | 8" | Light Gray (RAL 7035) | €302.14 | |
 |
3240110 | 0.38/0.42 | Steel | 106 | 51/46 | 5-1/5" | Terminals | 10" | Light Gray (RAL 7035) | €325.54 | |
 |
3241110 | 0.52/0.48 | Steel | 156 | 54/56 | 5-1/5" | Terminals | 10" | Light Gray (RAL 7035) | €356.27 |
