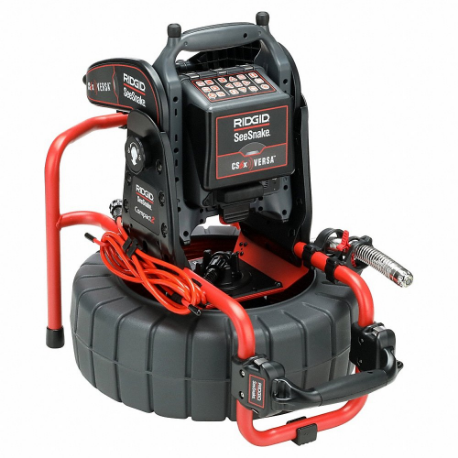

| Item | Inspection System |
| Cordless Tool Kit Contents | Bare Tool |
| Monitor Interface | Push Button |
| Battery Type | Li Ion |
| Cable Diameter | 0.27" |
| Cable Lg. | 100 ft. |
| Cable Type | Push Cable |
| Camera Dia. | 1" |
| Camera Material | Stainless Steel |
| Camera Type | Self Leveling |
| Compatible Mfr. Model Number | CS12X, CS65XR, CS6X |
| Connector Type | Universal 3 Pin |
| Data Transmission | Interconnect Cable |
| Distance Counting | Yes |
| Features | Downloadable Free HQx Live App to View and Record Inspection Jobs on Phone or Tablet, Equipped with High Power FleXmitter 512 Hz Sonde Compatible with All RIDGID Locators, High Dynamic Range Image Sensor Provides Bright, Saturated Images with Improved Detail, TiltSense Inclinometer Shows Camera’s Degree of Tilt Inside the Pipe When Used with CSx Series Monitor, TruSense Technology Features Two-Way Communication Between Camera and CSx Series Wi-Fi Enabled Monitor, Use with SeeSnake CS6x Versa |
| Function | Image Recording |
| Includes | Monitor |
| Light Type | LED |
| Material | Hardened Stainless Steel, Sapphire, Metal, Polyethylene, Polypropylene Coated, Fiberglass Inner Core |
| Max. Pipe Dia. | 6" |
| Maximum Operating Temperature | 122°F |
| Min. Pipe Dia. | 1 1/2" |
| Minimum Operating Temperature | 14°F |
| Monitor Size | 5 3/4" |
| Monitor Type | LCD |
| No. Of Batteries Included | 0 |
| Number Of Wheels | 0 |
| Overall Height | 17" |
| Overall Length | 25" |
| Overall Width | 14" |
| Power Source | Cordless |
| Product Type | Camera Reel and Monitor Systems |
| Resolution | 656 x 492 |
| Tilt Sensing | Not Included |
| Tool Series | SeeSnake |
| Water Resistance Rating | IPX5 |
