| Application | Electrical Distribution Equipment, Gas Station Installations, Ground Resistance Of Lightning Arrestors, Oil Field Equipment, Telecommunication Systems |
| Batteries Required | 4 |
| Battery Chemistry | Alkaline |
| Calibration Certificate | Available Separately |
| Current Accuracy | -2.5% to +2.5% |
| Data Logging | Yes |
| Display Type | Digital |
| Includes Software | No |
| Jaw Capacity | 1.26" |
| Min. Ground Resistance Measurement | 0.01 ohms |
| Number Of Digits | 4 |
| Power Source | Battery |
| Tool Height | 2 1/5" |
| Tool Length | 11 1/5" |
| Tool Width | 3.3" |
| Battery Size | AA |
| Cat Safety Rating | Cat III 300V |
| Data Logger | Yes |
| Display Screen Type | LCD |
| Features | Auto-Ranging Ground Resistance And Leakage Current Measurements, Data Hold Function, Durable Double Molded Conductor Clamp, Internal Memory Stores Up To 300 Readings, Low Battery Indicator And Auto Shut-Off, User Adjustable Alarms |
| Ground Testing Functions | Selective (3- or 4-Pole) Earth Ground Rod Testing |
| Includes | (2) Resistance Calibration Loops (1Ω and 10Ω), (4) Batteries, Harrd Carrying Case |
| Increment Of Variation | 0.01 ohms to 0.099 ohms, 0.1 ohms to 0.99 ohms, 1 ohms to 49.9 ohms, 100 ohms to 199 ohms, 200 ohms to 395 ohms, 400 ohms to 590 ohms, 50 ohms to 99.5 ohms, 600 ohms to 880 ohms, 900 ohms to 1200 ohms |
| Industry Application | Electrical Distribution Equipment, Gas Station Installations, Ground Resistance of Lightning Arrestors, Oil Field Equipment, Telecommunication Systems |
| Leakage Current Range | 0-9 mA/0.3-2.99A/10-20A/10-99 mA/100-299 mA/3-9.9A |
| Manufacturer Warranty Length | 1 yr. |
| Max. Ground Resistance | 1 K ohms |
| Maximum Operating Temperature | 131°F |
| Measurement Connectors | Clamp And Stakes |
| Min. Ground Resistance | 0.01 ohms |
| Minimum Operating Temperature | 32°F |
| Minimum Soil Resistivity Measurement | 0.01 ohms |
| Number Of Batteries Required | 4 |
| Number Of Records Stored | 300 |
| Operating Frequency | Greater Then 1kHz |
| Other Testing Functions | Leakage Current |
| Resistance Accuracy | +/-1% to +/-25% |
| Standards | CE, ROHS |
| Test Current | 0 to 9mA, 10 to 99mA, 100 to 299mA, 0.30 to 2.99A, 3 to 9.9A, 10 to 20A |

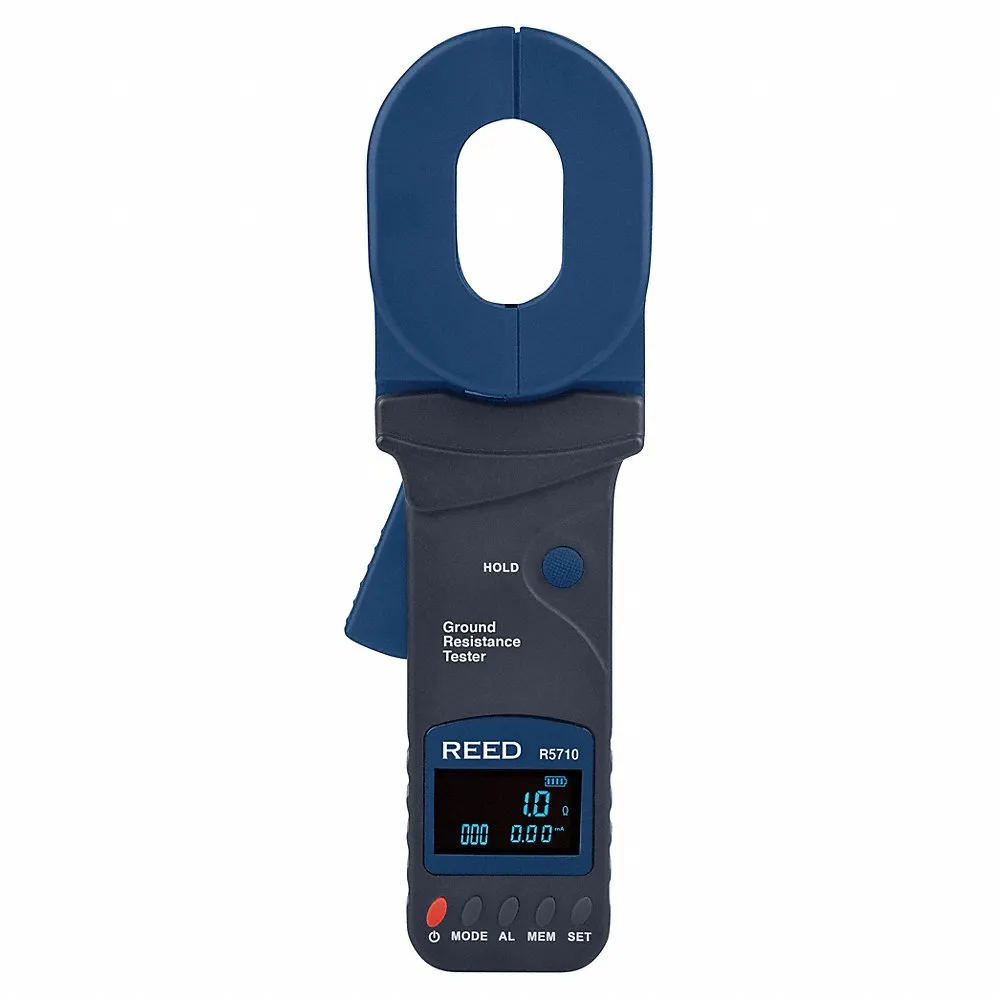

| Tester Type | Clamp-On Ground Resistance Tester |
