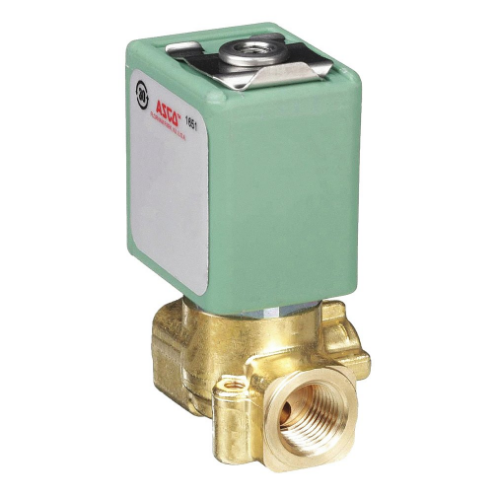

| Item | Solenoid Valve |
| Body Material | Brass |
| Center Line Pipe Center Size | 1.812" |
| Class | Class F |
| Coefficient Of Volume | 0.09 |
| Coil Enclosure | Watertight No Junction Box |
| Coil Insulation Class | F |
| Electrical Connection | DIN |
| Environmental Protection | Indoor, Outdoor |
| Hz | 50/60 Hz |
| Max. Fluid Temp. | 180°F |
| Min. Operating Pressure Differential | 0 psi |
| Operation | Direct Acting |
| Orifice Dia. | 0.062" |
| Overall Height | 2.062" |
| Overall Length | 1.312" |
| Overall Width | 1" |
| Pipe Size | 1/8" |
| Seal Material | Viton |
| Type | Air, Inert Gas, Light Oil, Water |
| Valve Configuration | Normally Closed |
| Valve Ways And Positions | 3 Ways And 2 Positions |
| Voltage | 24-480V AC |
| Wattage | 6.3 W |
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 7.87 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 4.32 |
| Country of Origin | US |
| Product | Model | Body Material | Center Line Pipe Center Size | Coefficient Of Volume | Coil Enclosure | Coil Insulation Class | Electrical Connections | Hz | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8210P093 | Brass | 3.25" | 3.00 | Watertight No Junction Box | H | 1/2" Conduit w/18" Leads | 50/60 | 66 | €307.49 | |
|
8210P094 | Brass | 3.25" | 4.00 | Watertight No Junction Box | H | 1/2" Conduit w/18" Leads | 50/60 | 66 | €343.48 | |
|
8210P095 | Brass | 3.437" | 5.00 | Watertight No Junction Box | H | 1/2" Conduit w/18" Leads | 50/60 | 66 | €346.35 | |
|
8210P004 | Brass | 3.437" | 13.00 | Watertight No Junction Box | H | 1/2" Conduit w/18" Leads | 50/60 | 66 | €512.75 | |
|
8210P100 | Brass | 4.75" | 43.00 | Watertight No Junction Box | H | 1/2" Conduit w/18" Leads | 50/60 | 66 | €1,286.87 | |
 |
8320G18424/DCDD | Brass | 1.75" | 0.12 | Watertight No Junction Box | F | 1/2" Conduit w/18" Leads | - | 66 | €189.64 | |
 |
8316G064120/60 110/50DA | Brass | 3-15/16" | 3.20 | Watertight No Junction Box | F | 1/2" Conduit w/18" Leads | 50/60 | 66 | €596.70 |
