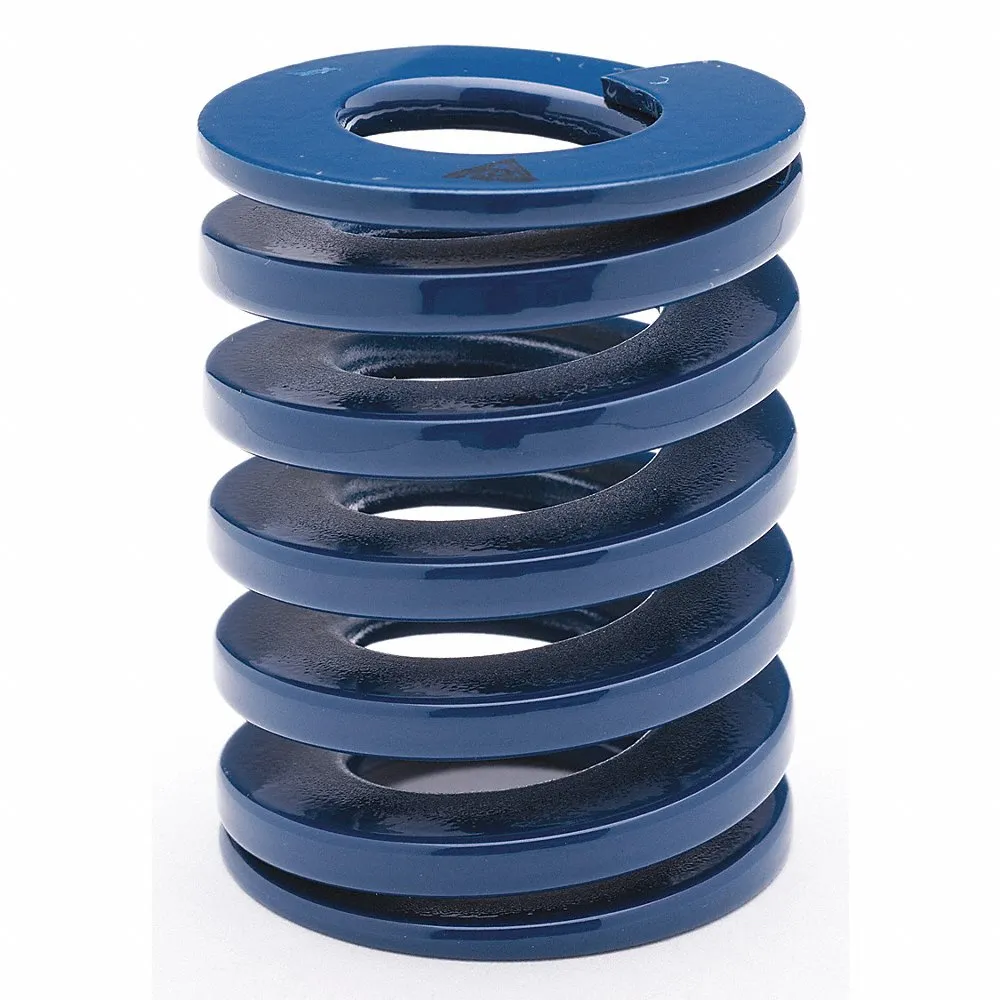

| Item | Die Spring |
| Color | Blue |
| End Type | Closed, Grounded |
| Finish | Painted |
| Free Length | 2.756" |
| Inner Dia. | 0.394" |
| Load At Max. Deflection For Long Life | 107 lbf. |
| Load At Max. Deflection For Optimal Life | 95 lbf. |
| Load Capacity | Not Rated |
| Material | Chrome Silicone |
| Max. Deflection | 1.1" |
| Max. Deflection For Long Life | 0.992" |
| Max. Deflection For Optimal Life | 0.882" |
| Max. Operating Deflection | 1.102" |
| Operating Temp. Range | Not Rated |
| Outer Dia. | 0.787" |
| Solid Length | 1.656" |
| Spring Rate (stiffness) | 107.92 lbs./in. |
| Type | Light Duty |
| Die Spring Color | Blue |
| Outside Diameter | 0.79" |
| Product Type | Die Spring |
| Series | JIS Series |
| Spring Rate | 107.4 lbs.-in. |
| Spring Shape | Cylindrical |
| Standards | ASTM A877 |
| System Of Measurement | Imperial |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 7 |
| Ship width (cm) | 2.79 |
| Country of Origin | US |
