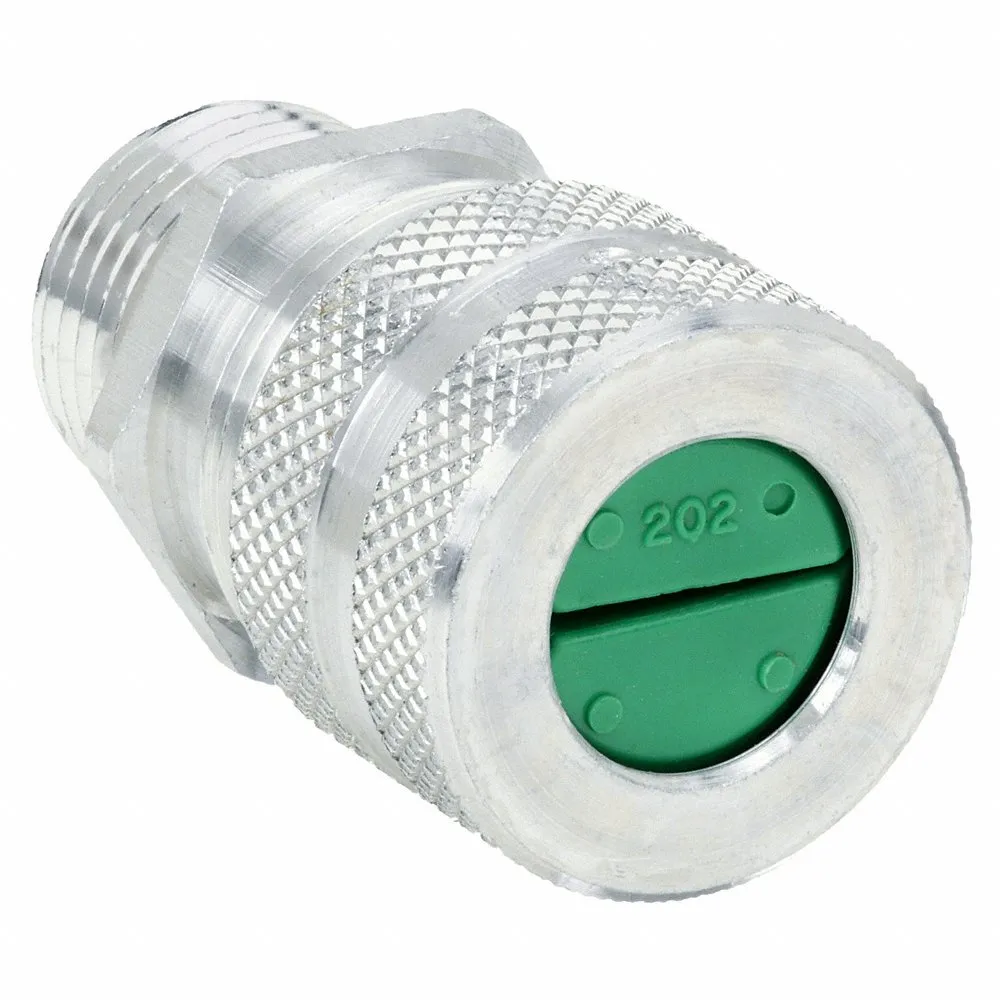

| Item | Cord Connector |
| Body Color | Silver |
| Body Color - Cord Connector | Silver |
| Body Material | Aluminum |
| Box Connection Size | 1/2" |
| Box Connection Type | MNPT |
| Box To End Of Connector Length | 1 1/4" |
| Collar Material | Aluminum |
| Color | Silver |
| Color Code | Green |
| Compatible Conduit Trade Size | 1/2" |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Conduit Type | Liquidtight |
| Configuration | Straight |
| Connection Orientation | 180° , Straight |
| Connector Type | Straight |
| Cord Dia. | 0.06" to 0.13" |
| Dimensions | 1.65" x 1.13" x 1.13" |
| Environmental Rating | Liquid Tight |
| External Strain Relief Material | No External Strain Relief |
| Fitting Type | Connectors |
| For Maximum Cable Od | 0.13" |
| For Min. Cable Od | 0.06" |
| For Minimum Cable Od | 0.06" |
| Form Size | F2 |
| Gland Color Code | Green |
| Grommet Color Code | Green |
| Grommet Material | Neoprene |
| Height | 1.13" |
| Hub Size | 1/2" |
| Insulated | No |
| Length - Box To End Of Connector | 1 1/4" |
| Liquid Tight | Yes |
| Liquid Tight / Dust Tight | Yes |
| Number Of Cords | 1 |
| Strain Relief Type | No External Strain Relief |
| Style | Straight |
| Width | 1.13" |
| Box Connection | 1/2" MNPT |
| Cord Dia. Range | 0.06" to 0.13" |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Liquid-tight | Yes |
| Material - External Strain Relief | No External Strain Relief |
| Standards | UL 514B |
| Thread Type | NPT |
| Ship weight (kg) | 0.03 |
| Country of Origin | US |
