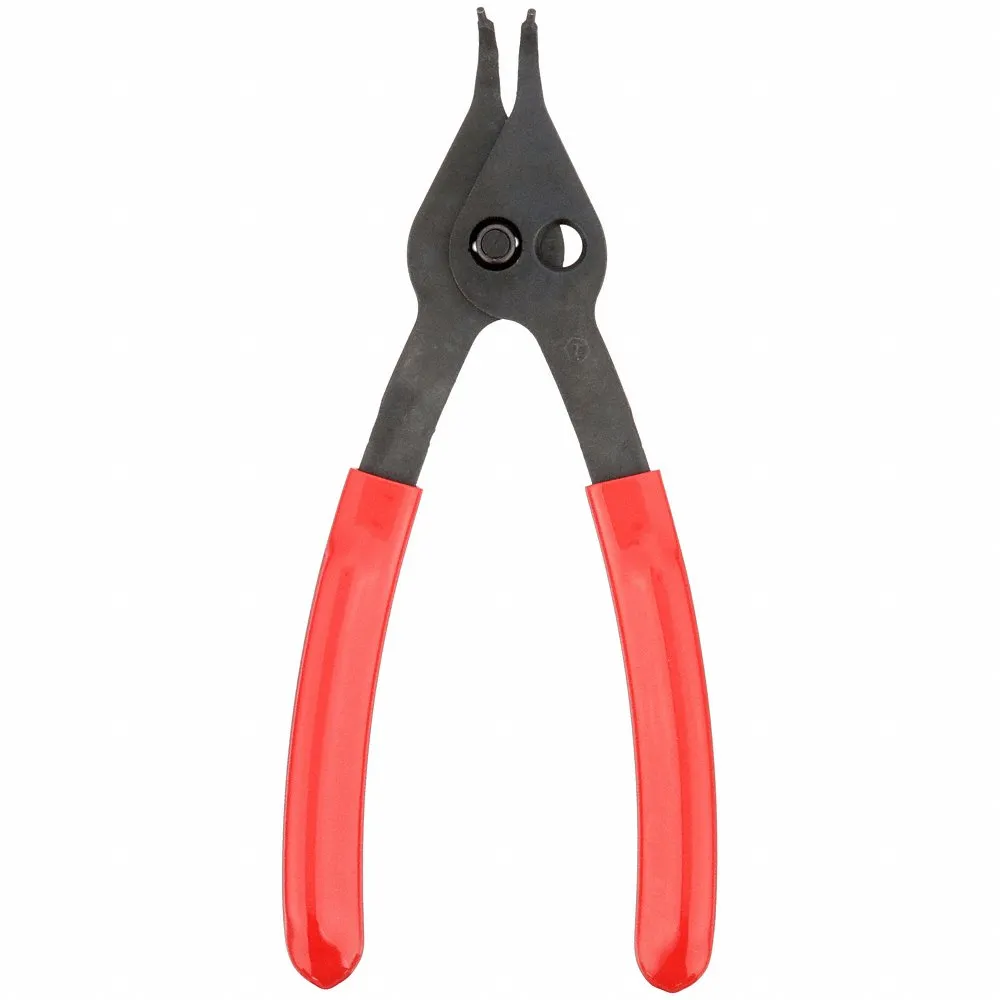

PROTO J607 Retaining Ring Plier, External/Internal, 0.07 Inch Tip Dia, Manual
€49.92 /unit
Request a Quote
Payment
Payment
| Item | Retaining Ring Plier |
| Conversion Mechanism | Push Button Release |
| Features | Double-Chamber Air Cushion Grip, Precision Ground Tips |
| For Maximum Bore Diameter | 1 3/4" |
| For Maximum Shaft Dia. | 1 7/16" |
| For Maximum Shaft Diameter | 1.438" |
| For Min. Shaft Dia. | 1" |
| For Minimum Bore Diameter | 1 1/16" , 1.062" |
| For Minimum Shaft Diameter | 1" |
| For Ring Type | External, Internal |
| For Use With | Retaining Rings |
| Grip Type | Standard Cushion |
| Includes | Blow-Mold Carrying Case |
| Jaw Opening Type | Manual |
| Non-sparking | No |
| Overall Length | 7 3/8" |
| Plier Product Group | Pliers |
| Plier Style | Convertible |
| Replaceable Tips | No |
| Tip Adjustment | No |
| Tip Angle | 45° |
| Tip Dia. | 0.07" |
| Tip Shape | Round |
| Tip Type | Fixed |
| Type | Retaining Ring Pliers |
| Grip Style | Standard Cushion |
| Plier Type | Retaining Ring Pliers |
| Standards | ASME B107.500-2010 |
| Tip Diameter | 0.07" |
| Weight | 0.32 lbs. |
| Ship weight (kg) | 0.14 |
| Ship length (cm) | 18.73 |
| Country of Origin | US |
| Model | For Bore Dia. | For Shaft Dia. | Handle | Handle Color | Handle Design | Item | Material | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| J379 | 2-1/16 to 3" | Various | Plastisol Air Cushioned | Red | Cushion Grip | Retaining Ring Pliers | Alloy Steel | 8.625" | €71.37 | |
| J370 | 3/8 to 9/16" | 1/2 to 25/32" | Red Plastisol | Red | Plastic Dipped | Retaining Ring Pliers | Carbon Steel | 5.75" | €46.37 | |
| J371 | 3/4 to 1" | 1/8 to 5/32" | Red Plastisol | Red | Plastic Dipped | Retaining Ring Pliers | Carbon Steel | 5 11/16" | €46.62 | |
| J372 | 5/8 to 1-1/64" | 11/16 to 7/8" | Red Plastisol | Red | Plastic Dipped | Retaining Ring Pliers | Carbon Steel | 5.875" | €47.92 | |
| J373 | 1 to 1-1/64" | 13/16 to 1" | Cushioned Grip | Red | Cushion Grip | Retaining Ring Pliers | Carbon Steel | 5.75" | €51.74 | |
| J374 | 1-1/16 to 1-3/8" | 3/16 to 1/4" | Cushioned Grip | Red | Cushion Grip | Retaining Ring Pliers | Carbon Steel | 5 11/16" | €50.42 | |
| J375 | 1-1/16 to 2" | 1 to 2" | Cushioned Grip | Red | Cushion Grip | Retaining Ring Pliers | Carbon Steel | 7.375" | €51.45 |
