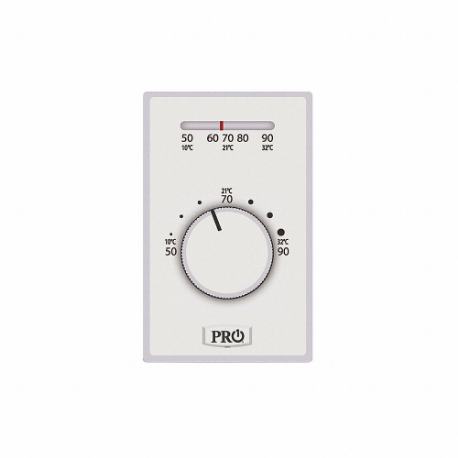

| Item | Line Volt Mechanical Tstat |
| Amps | 22A |
| Application | Heat Only |
| Color | White |
| Compatible System Type | Electric Heating |
| Contact Rating Resistive @ 120v | 22A |
| Contact Rating Resistive @ 240v | 22A |
| Contact Rating Resistive @ 277v | 19A |
| Control Type | Exposed Dial |
| Depth | 1" |
| Differential Temp. | 3°F |
| Differential Type | Fixed |
| Display Type | Analog |
| Electrical Connection Type | Hardwired |
| Enclosure Color | White |
| Fan Settings | No Fan Setting |
| Full Load Amps @ 120v | 22A |
| Full Load Amps @ 240v Ac | 22A |
| Height | 4 45/64" |
| Housing Color | White |
| Housing Material | Plastic |
| Includes Positive Off | No |
| Lead Length | 6" |
| Max. Control Temp. | 90°F |
| Mercury Free | Yes |
| Min. Control Temp. | 50°F |
| Mounting Direction | Vertical |
| Mounting Location | Wall |
| Mounting Type | Surface Mount |
| Number Of Heating Stages | 1 |
| Number Of Poles | 1 |
| Number Of Switches | 1 |
| Overall Depth | 1" |
| Overall Height | 4 11/16" |
| Overall Width | 2 15/16" |
| Remote Control Functions | No Remote Control Included |
| Sensor Type | Bi Metallic Spring |
| Switch Action | Open On Rise |
| System Settings | On |
| Temperature Readout | Yes |
| Temperature Scale | Celsius, Fahrenheit |
| Thermostat Heating/cooling | Heating |
| Thermostat Programmable | No |
| Type | Line Voltage |
| Voltage | 120-277V AC |
| Width | 2 29/32" |
| Enclosure Nema Rating | 1 |
| Full Load Amps @ 120v Ac | 22A |
| Maximum Control Temperature | 90°F |
| Minimum Control Temperature | 50°F |
| Standards | CULUS LISTED |
| Switch Type | SPST |
| Temperature Differential | 3°F |
| Thermostat Type | Line Voltage |
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 11.91 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 7.46 |
| Country of Origin | CN |
| Product | Model | Price | |
|---|---|---|---|
 |
T501ML4 | €64.86 |
