| Item | Mixing Valve |
| Body Material | Brass |
| Cold Inlet Temp. | +40°F to +80°F |
| Flow Rate | 110 GPM |
| Hot Inlet Temp. | +120° to +180°F |
| Inlet Size | 1 1/4" |
| Inlet Type | FNPT |
| Max. Pressure | 125 psi |
| Outlet Size | 1 1/4" |
| Outlet Type | FNPT |
| Overall Height | 9 1/4" |
| Overall Width | 15 1/2" |
| Temp. Range | +90°F to +160°F |
| Connection Type | NPT x NPT |
| Flow Coefficient (cv) | 16.44 |
| Includes Temperature Gauge | Temperature Gauge Not Included |
| Inlet (cold) Temperature Range | 40°F to 80°F |
| Inlet (hot) Temperature Range | 120°F to 180°F |
| Inlet Connection Size | 1 1/4" |
| Max. Operating Pressure | 125 psi |
| Outlet Connection Size | 1 1/4" |
| Outlet Temperature Range | 90°F to 160°F |
| Standards | ASSE 1017, CSA B125 |
| Valve Type | Hot Water Master |
| Ship weight (kg) | 8.78 |
| Ship height (cm) | 14.48 |
| Ship length (cm) | 26.42 |
| Ship width (cm) | 25.4 |
| HS code | 8481809015 |
| Country of Origin | US |
| Product | Model | Flow Rate | Inlet Size | Outlet Size | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|
 |
3/4 LFMM431-1 | 42 gpm | 3/4" | 3/4" | 7.25" | 11.375" | €1,661.67 | |
 |
3/4 x 1 LFMM432-1 | 64 gpm | 3/4" | 1" | 7.25" | 11.375" | €1,851.36 | |
|

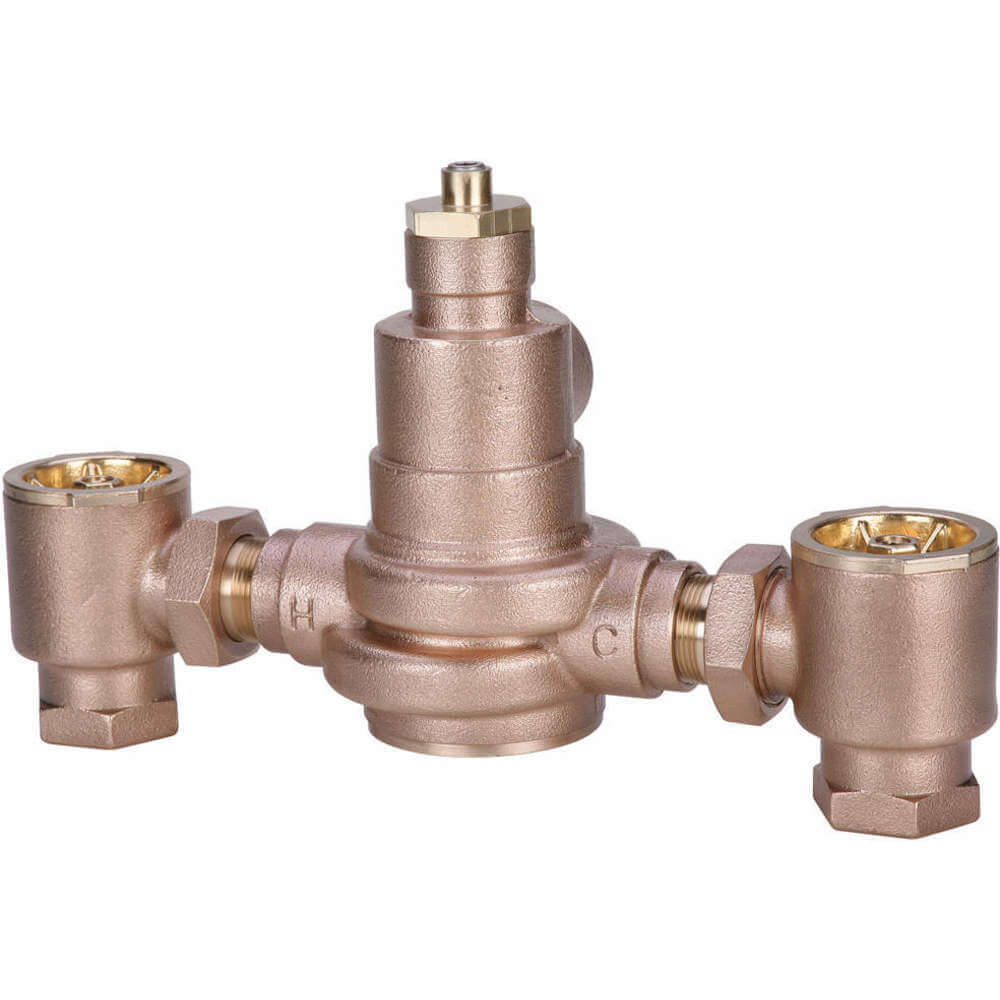

1 1/4 x 1 1/2 LFMM434-1 | 144 gpm | 1.25" | 1.5" | 9.25" | 15.5" | €2,721.75 | |
 |
2 LFMM435-1 | 208 gpm | 2" | 2" | 12.25" | 19.25" | €4,124.32 |
