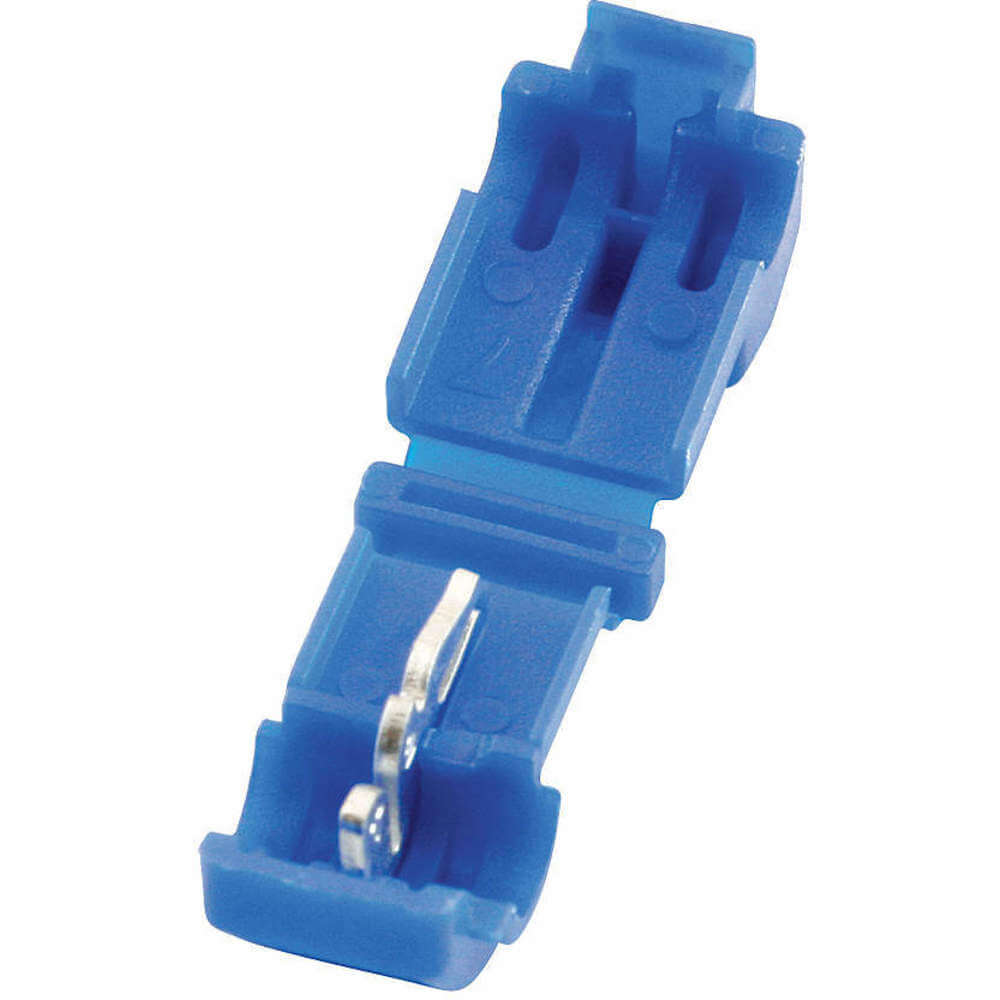

| Item | Insulation Disp. Connector |
| Application | Dry Environment |
| Color | Blue |
| Compatible Installation Tool Model Number | Not Applicable |
| Compatible With Product Type | Insulated Stranded Copper Cable |
| Connector Type | Crimp |
| Fill Material | No Fill |
| Flame Retardant | Yes |
| Includes | Not Applicable |
| Insulation Material | Nylon |
| Max. Insulation Dia. | 2.5 mm , 3.81 mm |
| Max. Temp. | 105°C |
| Max. Voltage | 600V |
| Maximum Insulation Diameter | 0.138 mm |
| Maximum Run Wire Insulation Diameter | Not Applicable |
| Maximum Run Wire Size | 14 AWG |
| Maximum Tap Conductors | 1 |
| Maximum Tap Wire Insulation Diameter | Not Applicable |
| Maximum Tap Wire Size | 14 AWG |
| Minimum Run Wire Size | 18 AWG |
| Minimum Tap Wire Size | 18 AWG |
| No. Of Ports | 1 |
| Number Of Ports | 1 |
| Resistance Properties | Not Applicable |
| Rohs Compliant | Yes |
| Special Features | Insulation Displacement Connector Is Designed To Electrically Join A Tap Wire To A Through-Run Wire |
| Temp. Range | 105°C |
| Ul 94 Flammability Rating | V-2 |
| Wire Range | 18 AWG to 14 AWG |
| Wire Type | Electrical |
| Contact Finish | Tin |
| Contact Material | Brass |
| Flammability Rating | V-2 |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Run Wire Size Range | 18 AWG to 14 AWG |
| Standards | UL/CUL LISTED E96029 |
| Tap Wire Size Range | 18 AWG to 14 AWG |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 8.89 |
| HS code | 8536904000 |
| Country of Origin | TW |
