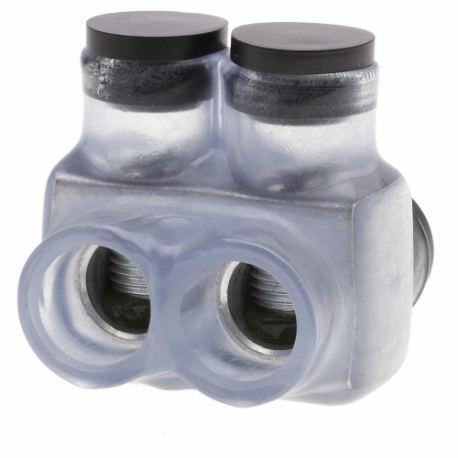

POLARIS ITD-3/0CB Wire Connector, Clear, 2 Ports, 3/0 AWG to 6 AWG Wire Size Range, Plastisol
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Wire Connector |
| Body Material | Aluminum Alloy |
| Color | Clear |
| Connector Type | Double Sided Entry |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size (maximum) | 6 AWG |
| For Stranded Copper Wire Size (minimum) | 0.41 AWG |
| Head Style | Hex |
| Hex Size | 1/4" |
| Insulation Material | Plastisol |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 600V |
| Min. Operating Temp. | -45°F |
| Number Of Ports | 2 |
| Rohs Compliant | Yes |
| Torque | 250 lbs.-in. |
| For Stranded Copper Wire Size - Maximum | 6 AWG |
| For Stranded Copper Wire Size - Minimum | 3/0 AWG |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Minimum Operating Temperature | -45°F |
| Standards | CULUS LISTED |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
ISPBS350 | Insulated Multitap Connector | €146.30 | |
 |
IPLD500-10C | Insulated Multitap Connector | €410.44 | |
 |
ISRH-750C | Insulated Multitap Connector | €259.64 | |
 |
IT-1/0CB | Insulated Multitap Connector | €87.69 | |
 |
ISR-1/0CB | Insulated Multitap Connector | €89.77 | |
 |
IT-4CB | Insulated Multitap Connector | €36.79 | |
 |
IT-750CB | Insulated Multitap Connector | €236.02 |
