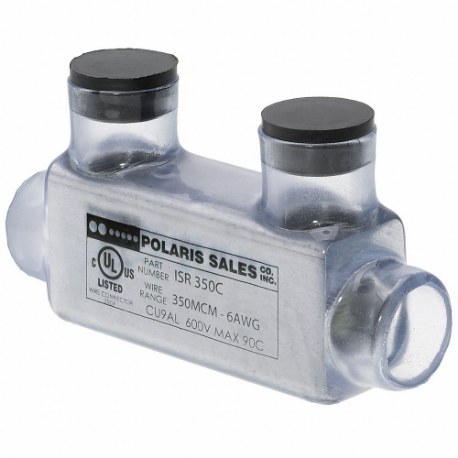

| Item | Insulated Multitap Connector |
| Body Material | Aluminum |
| Color | Clear |
| Compatible With | Copper And Aluminum Conductors |
| Connector Type | Inline |
| Direct Burial Rated | No |
| Finish | Plastisol |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size (maximum) | 350 kcmil |
| For Stranded Copper Wire Size (minimum) | 6 AWG |
| Head Style | Hex |
| Hex Size | 0.312" |
| Insulation Material | Plastisol |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 600V |
| Min. Operating Temp. | -49°F |
| Number Of Ports | 2 |
| Overall Length | 4.47" |
| Rohs Compliant | Yes |
| Screw Material | Aluminum |
| Special Features | Clear Design Allows For Optimal Conductor Placement And A More Secure Connection, Pre-Filled With Oxide Inhibitor To Prevent Corrosion And Provide A Low-Contact Resistance Connection, Removable Plugs Ensure Secure Entry Port Closure While Preventing Debris From Entering Connector, Smooth Exterior Finish And Rounded Corners Provide A More Comfortable Grip For Maximum Torque |
| Strip Length | 1 1/2" |
| Torque | 400 lbs.-in. |
| Width | 1 8/25" |
| Compatible With Product Type | Copper and Aluminum Conductors |
| For Stranded Copper Wire Size - Maximum | 350 kcmil |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Minimum Operating Temperature | -49°F |
| Overall Width | 1 8/25" |
| Standards | CULUS, UL 486A |
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
ISPBS350 | Insulated Multitap Connector | €146.30 | |
 |
IPLD500-10C | Insulated Multitap Connector | €410.44 | |
 |
ISRH-750C | Insulated Multitap Connector | €259.64 | |
 |
IT-1/0CB | Insulated Multitap Connector | €87.69 | |
 |
ISR-1/0CB | Insulated Multitap Connector | €89.77 | |
 |
IT-4CB | Insulated Multitap Connector | €36.79 | |
 |
IT-750CB | Insulated Multitap Connector | €236.02 |
