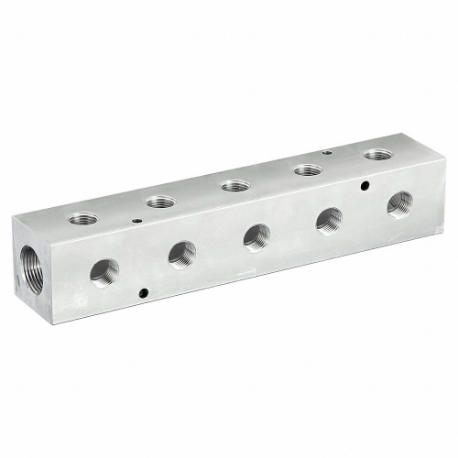

| Item | Manifold |
| Flow Direction | Right Angle |
| For Fluid Type | Fluid, Gas |
| Inlet Connection Gender | Female |
| Inlet Connection Type | NPT |
| Inlet Size | 1" |
| Manifold Grade | Grade 6061 |
| Material | Aluminum |
| Max. Operating Pressure | 3000 psi |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | -10°F |
| Mounting Hole Dia. | 0.26" |
| Number Of Inlets | 2 |
| Number Of Mounting Holes | 2 |
| Number Of Outlets | 5 |
| Outlet Connection Gender | Female |
| Outlet Size | 1/2" |
| Outlet Spacing | 2 1/4" |
| Outlet Type | NPT |
| Overall Height | 2 1/4" |
| Overall Length | 12" |
| Overall Width | 2 1/4" |
| Resistance Properties | Corrosion Resistant |
| Shape | Rectangle |
| Inlet Connection Size | 1" |
| Manifold Material | Aluminum |
| Manifold Material Grade | Grade 6061 |
| Manifold Shape | Rectangle |
| Maximum Operating Pressure | 3000 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | -10°F |
| Mounting Hole Diameter | 0.26" |
| Outlet Connection Size | 1/2" |
| Outlet Connection Type | NPT |
| Ship weight (kg) | 1.96 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 5.72 |
| Country of Origin | US |
| Product | Model | Inlet Size | Item | Mounting Hole Size | Number Of Inlets | Number Of Outlets | Outlet Size | Overall Height | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M10-125-2-90 | 1/4" | Manifold, 90 Degrees | 0.17" | 2 | 2 | 1/8" | 1" | 1.75" | €29.23 | |
 |
M10-125-3-90 | 1/4" | Manifold, 90 Degrees | 0.17" | 2 | 3 | 1/8" | 1" | 2.5" | €37.11 | |
 |
M10-125-4-90 | 1/4" | Manifold, 90 Degrees | 0.17" | 2 | 4 | 1/8" | 1" | 3.25" | €39.64 | |
 |
M10-125-5-90 | 1/4" | Manifold, 90 Degrees | 0.17" | 2 | 5 | 1/8" | 1" | 4" | €42.52 | |
 |
M10-125-6-90 | 1/4" | Manifold, 90 Degrees | 0.17" | 2 | 6 | 1/8" | 1" | 4.75" | €45.04 | |
 |
M10-125-8-90 | 1/4" | Manifold, 90 Degrees | 0.17" | 2 | 8 | 1/8" | 1" | 6.25" | €51.11 | |
|
M20-250-2-90 | 3/8" | Manifold, 90 Degrees | 0.2" | 2 | 2 | 1/4" | 1.25" | 2.125" | €34.58 |
