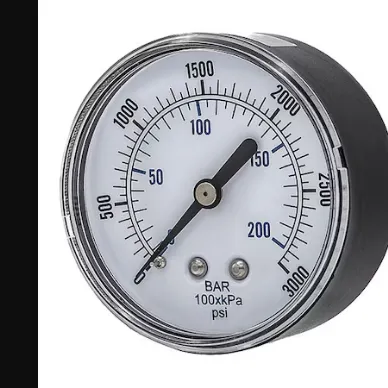

| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Grade | Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Temp. Range | -40°F to +140°F |
| Application | Commercial , General-Purpose Case |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Depth | 1.06" |
| Case Dia. | 2.11" |
| Case Material | Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Center Back |
| Dial Color | White |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Case Color | Black |
| Gauge Case Liquid | None |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Primary Range No.ed Graduations | 500 |
| Gauge Primary Range Units | Psi |
| Gauge Secondary Range Units | Bar |
| Gauge Socket Material | Copper Alloy |
| Gauge Wetted Parts | Copper |
| Graduations | 500 psi |
| Hazardous Location Rating | Not Rated |
| Includes | Plastic Case |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Mfr. Series | SEP 100 Series |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 3000 psi |
| Pressure Range Type | Pressure |
| Primary Scale Numeric Increments | 500 , 500.0 |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Range | 0 psi to 3000 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 Bar to 207 Bar |
| Secondary Range | 0 Bar to 207 Bar |
| Secondary Scale Units | Bar |
| Sensor Material | Copper Alloy |
| Socket Material | Copper Alloy |
| Vibration Resistance | None |
| Wetted Materials | Copper Alloy |
| Ambient Operating Temperature Range | -40°F to +140°F |
| Case Diameter | 2.11" |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | General Purpose Case |
| Gauge Case Material | Steel |
| Includes Calibration Certificate | No |
| Ip/nema Rating | Not Rated |
| Lens Material - Gauge | Plastic |
| Manufacturer Warranty Length | 1 yr. |
| Primary Graduations | 500/500 |
| Primary Pressure Range | 0 to 3000 |
| Primary Scale Minor Graduations | 500 |
| Process Connection | 1/4" NPT Male |
| Series | SEP 100 Series |
| Standards | ASME |
| Wetted Parts Material | Copper Alloy |
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 5.36 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 2.69 |
| Country of Origin | CN |
| Product | Model | Price | |
|---|---|---|---|
 |
SEP-101D-254M-BSPT | €10.19 | |
 |
SEP-102D-254M | €10.32 | |
 |
SEP-102D-254M-BSPT | €11.43 | |
 |
SEP-101D-204M-BSPT | €9.19 | |
 |
SEP-102D-204M-BSPT | €10.32 | |
 |
SEP-102D-204M | €9.22 | |
 |
SEP-101D-354M | €17.26 |
