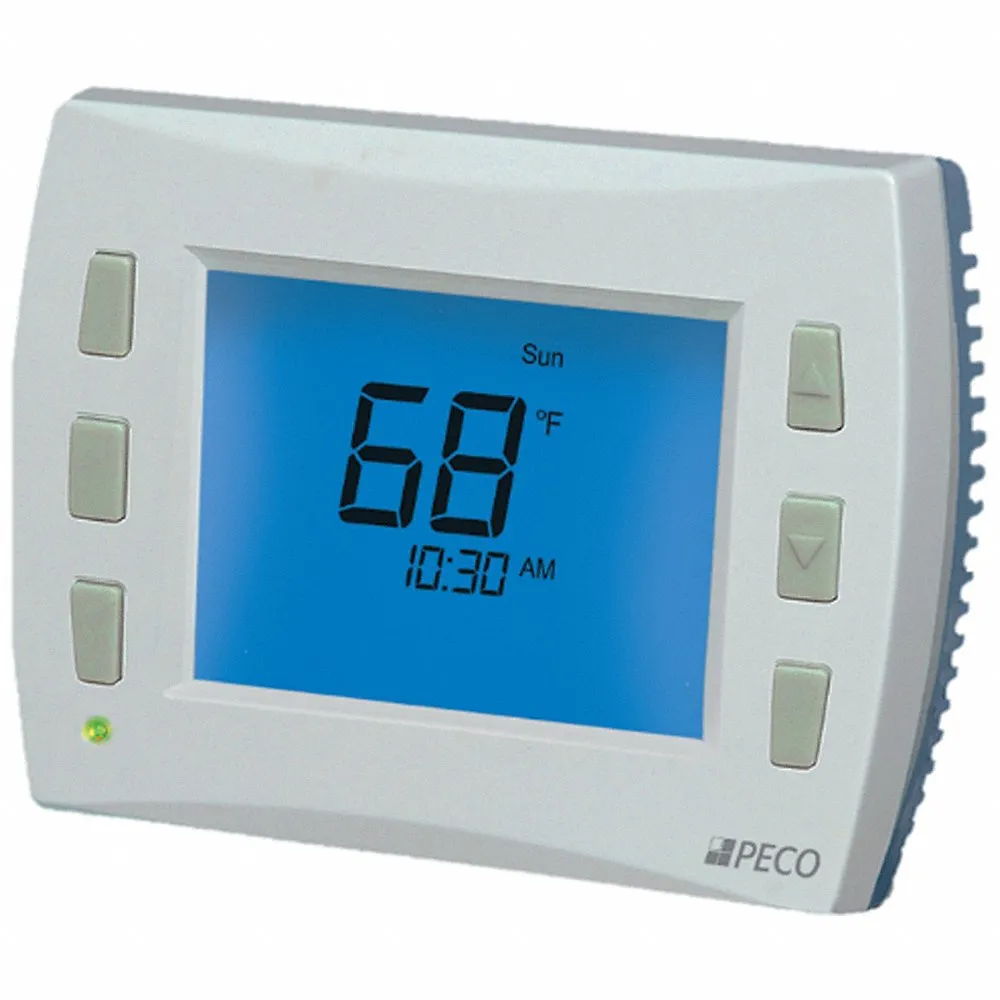

| Item | Fan Coil Thermostat |
| Application | Heat And Cool |
| Backlit Screen | Yes |
| Backlit Screen Color | Blue |
| Battery Backup | No |
| Changeover Type | Automatic/Manual |
| Compatible System Type | Fan Coil Unit |
| Control Type | Button |
| Dehumidification Control | No |
| Differential Temp. | 1°F |
| Differential Type | Fixed |
| Digit Size | Standard |
| Display Type | Digital |
| Dual Transformer Compatible | No |
| Electrical Connection Type | Hardwired |
| Fan Settings | Heat Off Cool Auto |
| Frequency | 50/60 Hz |
| Full Load Amps @ 120v | 5.8A |
| Full Load Amps @ 240v Ac | 2.9A |
| Full Load Amps @ 277v Ac | 2.4A |
| Housing Color | Off White |
| Housing Material | ABS |
| Humidification Control | No |
| Includes | Mounting Hardware |
| Includes Positive Off | Yes |
| Key Pad Lockout | Yes |
| Lead Length | 6" |
| Lead Material | Copper |
| Lead Wire Gauge | 18 ga. |
| Locked Rotor Amps @ 120v | 34.8A |
| Locked Rotor Amps @ 240v | 17.4A |
| Locked Rotor Amps @ 277v | 14.4A |
| Max. Control Temp. | 90°F |
| Max. Operating Temp. | 130°F |
| Min. Control Temp. | 50°F |
| Mounting Direction | Horizontal |
| Mounting Location | Wall |
| Number Of Zones | 1 |
| Occupancy Sensor | Includes Remote Occupancy Sensor |
| Overall Depth | 1 3/8" |
| Overall Height | 4 3/8" |
| Overall Width | 5.812" |
| Programming Capability | 7-Days/4-Event |
| Screen Height | 2 1/2" |
| Screen Width | 3 1/8" |
| Shape | Rectangle |
| Switch Action | Open On Rise |
| Switch Type | SPST |
| System Settings | Heat-Off-Cool-Auto |
| Temp. Settings Per Day | 4 |
| Temperature Readout | Yes |
| Temperature Scale | Celsius, Fahrenheit |
| Terminal Designations | C, DS, G, G1, G3, OCC, PS, RS, W, W2, WIRE LEADS R, Y |
| Type | Line Voltage, Low Voltage |
| Voltage | 24/110-277V AC |
| Contact Rating | 24 or 110-277V AC |
| Contact Type | Close on Rise, Open on Rise |
| Full Load Amps @ 120v Ac | 4.4A |
| Housing Type | Standard Housing |
| Maximum Control Temperature | 90°F |
| Maximum Operating Humidity | 95% |
| Maximum Operating Temperature | 120°F |
| Minimum Control Temperature | 50°F |
| Minimum Operating Humidity | 5% |
| Minimum Operating Temperature | 0°F |
| Mounting Type | Surface Mount |
| Number Of Switches | 2 |
| Pilot Duty Rating | 125 VA @ 120 to 277V AC, 24 VA @ 24V AC |
| Sensor Location | Remote |
| Standards | CULUS LISTED |
| Temperature Differential | 1° F |
| Temperature Limiting | Yes |
| Temperature Sensitivity | +/-1°F |
| Temperature Settings Per Day | 4 |
| Thermostat Type | Line Voltage, Low Voltage |
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 11.11 |
| Ship length (cm) | 3.49 |
| Ship width (cm) | 14.76 |
| Country of Origin | CH |
