| Base Width | 43 mm |
| Length | 360 mm |
| Material | Stainless Steel |
| Mounting Surface To Shaft Center | 28 mm |
| Rail End To Hole | 60 mm |
| Rail Mount Hole Center To Center Length | 120 mm |
| Rail Mount Hole Center To Center Width | 29 mm |
| Rail Mount Hole Thread Size | M4 |
| Rail Top Width | 6.6 mm |
| Shaft Diameter | 12 mm |
| Shaft Drilling | Pre Drilled |
| Shaft End To Hole | 60 mm |
| Shaft Hole Spacing | 120 mm |
| Shaft Material Grade | Grade 440 |
| Standards | ISO |
| Support Rail Drilling | Pre Drilled |
| Support Rail Length | 360 mm |
| Support Rail Material | Aluminum |
| System Of Measurement | Metric |

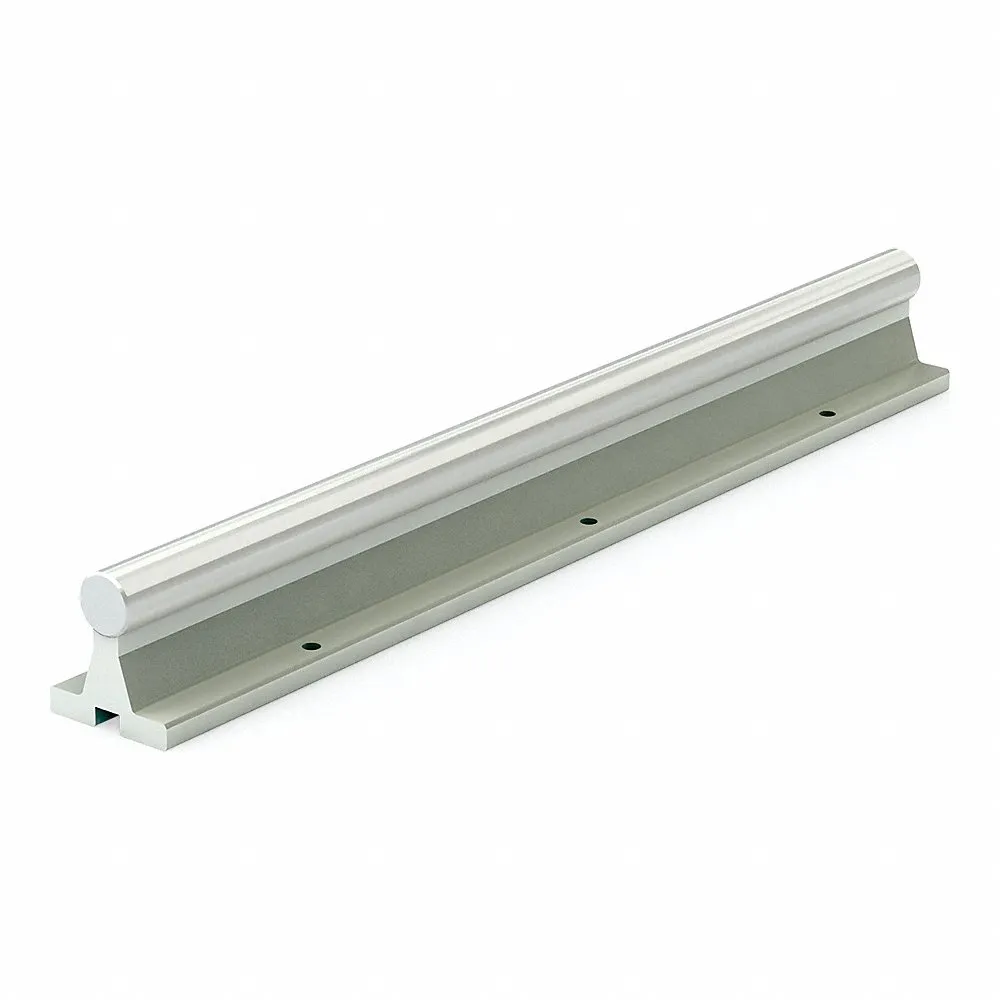

| Type | Linear Shafting Support Rail Assembly |
| Weight Per Length | 1.8 Kg-m |
| Ship weight (kg) | 1.52 |
| Country of Origin | US |
