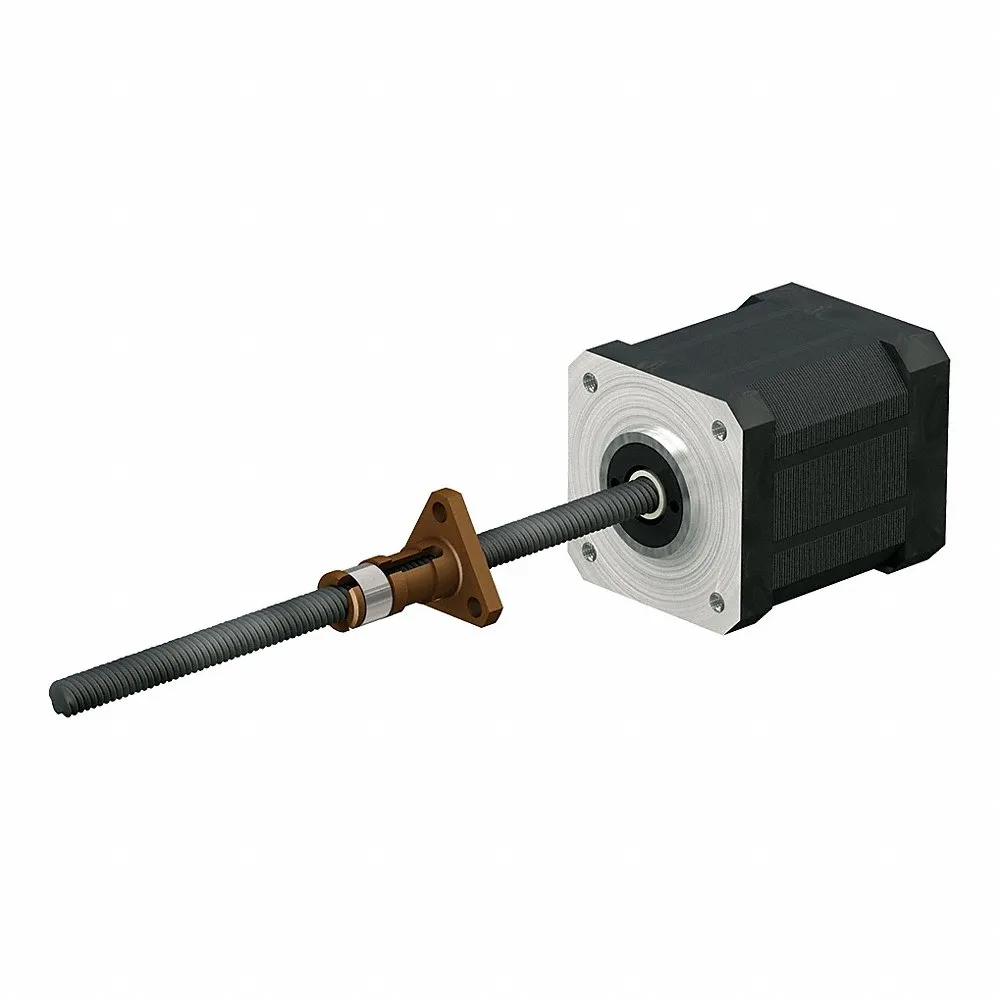

| Motor Type | Stepper Motor |
| Nut Drag Torque | 0.02 N-m to 0.024 N-m |
| Nut Material | Stainless Steel |
| Nut Shape | Triangle |
| Phase | 2 |
| Screw Material | Stainless Steel |
| Screw Type | Lead Screw |
| Step Accuracy | -5% to +5% |
| Steps Per Revolution | 200 |
| Thread Direction | Right |
| Assembly Type | Lead Screw Assembly |
| Coating Material | PTFE |
| Electrical Connection | Plug In Connector |
| Frame | NEMA 14 |
| Insulation Class | Class B |
| Insulation Resistance | 100 M ohms |
| Lead Accuracy | 0.003 in./ft. |
| Lead Length | 5 mm |
| Left End Components | None |
| Motor Ip Rating | IP40 |
| Motor Length | 36 mm |
| Motor Maximum Operating Temperature | 50°C |
| Motor Minimum Operating Temperature | -20°C |
| Motor Operating Temperature Range | -20°C to 50°C |
| Motor Size | NEMA 14 |
| Nut Bolt Circle Diameter | 28.6 mm |
| Nut Diameter | 15.9 mm |
| Nut Dynamic Load Capacity | 400N |
| Nut Flange Diameter | 38.1 mm |
| Nut Flange Thickness | 4.8 mm |
| Nut Length | 38.1 mm |
| Nut Mounting Hole Diameter | 5.1 mm |
| Nut Type | Anti-Backlash |
| Percent Efficiency | 66% |
| Rated Current | 1.5A |
| Right End Components | None |
| Screw Diameter | 10 mm |
| Screw Length | 400 mm |
| Screw Material Grade | Grade 300 |
| Travel Per Step | 0.025 mm |
| Winding Resistance | 1.61 ohms |
| Ship weight (kg) | 0.68 |
| Country of Origin | US |
