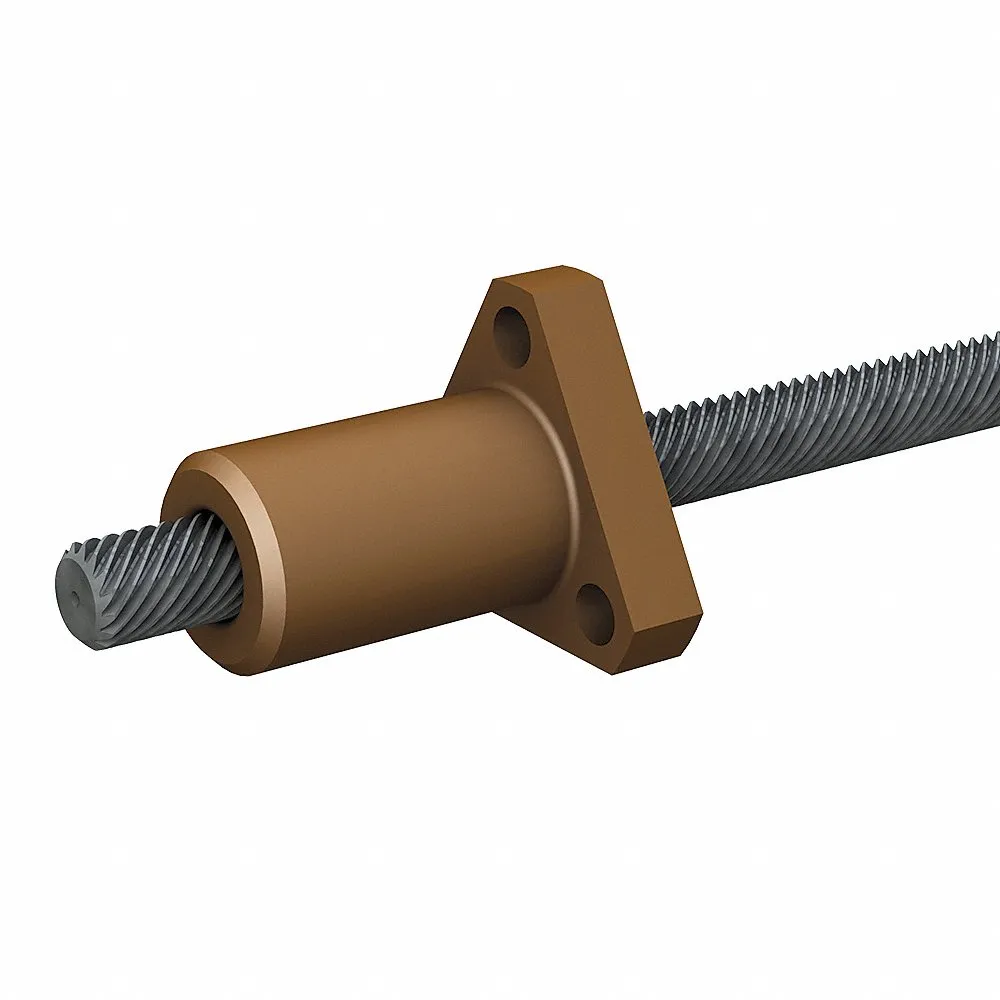

PBC LINEAR LSR1001T-0508-TS-NNN-NNN-N Precision Lead Screw and Nut Assembly, Std, PTFE, Stainless Steel

Item: CW8QCMModel: LSR1001T-0508-TS-NNN-NNN-NCross Ref: 807LU8
In Stock

Get it by Tuesday, Jun 17

€100.41 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Assembly TypeLead Screw And Nut Assembly
Coating MaterialPTFE
Lead Accuracy0.003 in./ft.
Lead Length1 mm
Nut Bolt Circle Diameter28.6 mm
Nut Diameter15.9 mm
Nut Drag TorqueFree Wheeling
Nut Dynamic Load Capacity445N
Nut Flange Diameter38.1 mm
Nut Flange Thickness4.8 mm
Nut Length25.4 mm
Nut MaterialStainless Steel
Nut Mounting Hole Diameter5.1 mm
Nut ShapeTriangle
Nut TypeStandard
Percent Efficiency28%
Screw Diameter10 mm
Screw Length508 mm
Screw MaterialStainless Steel
Screw Material GradeGrade 300
Screw TypeLead Screw
Thread DirectionRight

Shipping Info:

Ship weight (kg) 0.5
Country of OriginUS
