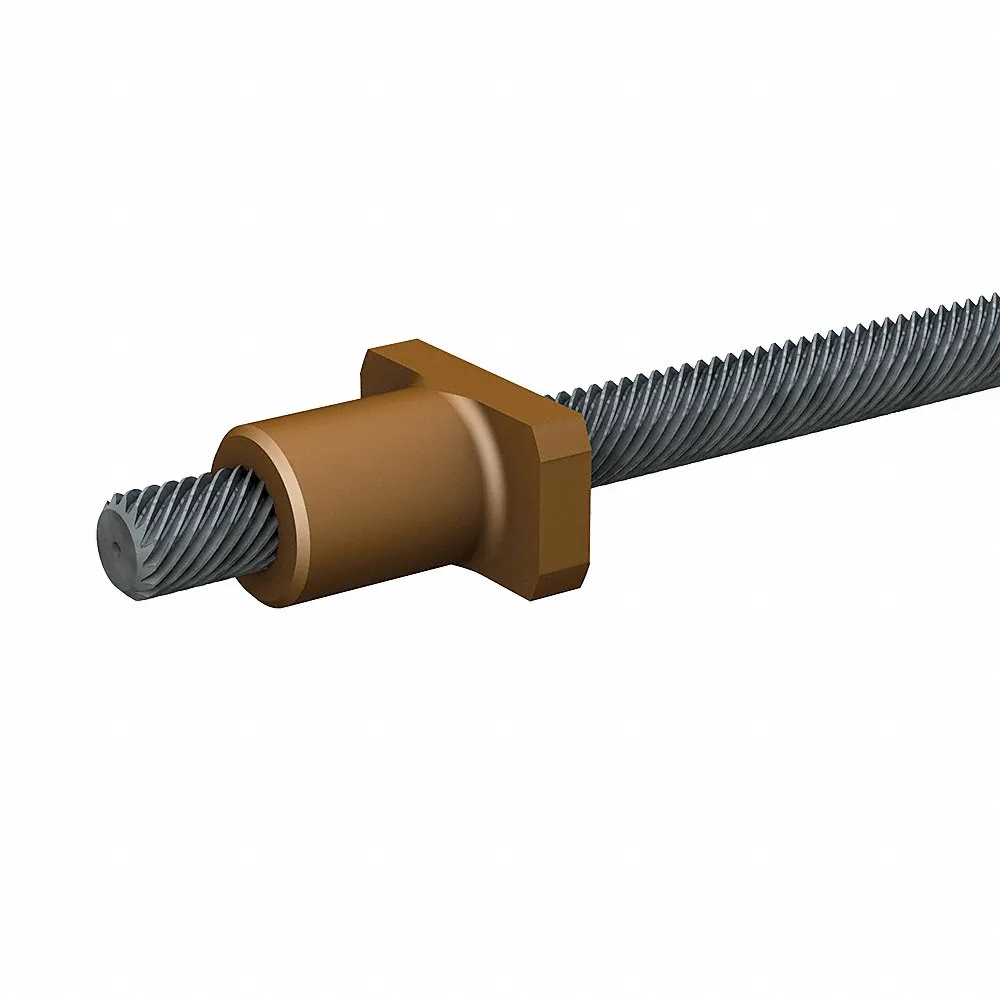

Assembly Type | Lead Screw And Nut Assembly |
Coating Material | PTFE |
Lead Accuracy | 0.003 in./ft. |
Lead Length | 4 mm |
Nut Diameter | 10.2 mm |
Nut Drag Torque | Free Wheeling |
Nut Dynamic Load Capacity | 334N |
Nut Flange Diameter | 17.8 mm |
Nut Flange Thickness | 3.4 mm |
Nut Length | 22.2 mm |
Nut Material | Stainless Steel |
Nut Shape | Rectangle |
Nut Type | Standard |
Percent Efficiency | 71% |
Screw Diameter | 6 mm |
Screw Length | 254 mm |
Screw Material | Stainless Steel |
Screw Material Grade | Grade 300 |
Screw Type | Lead Screw |
Thread Direction | Right |
Ship weight (kg) | 0.45 |
Country of Origin | US |
