Get it by Monday, Jun 16
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

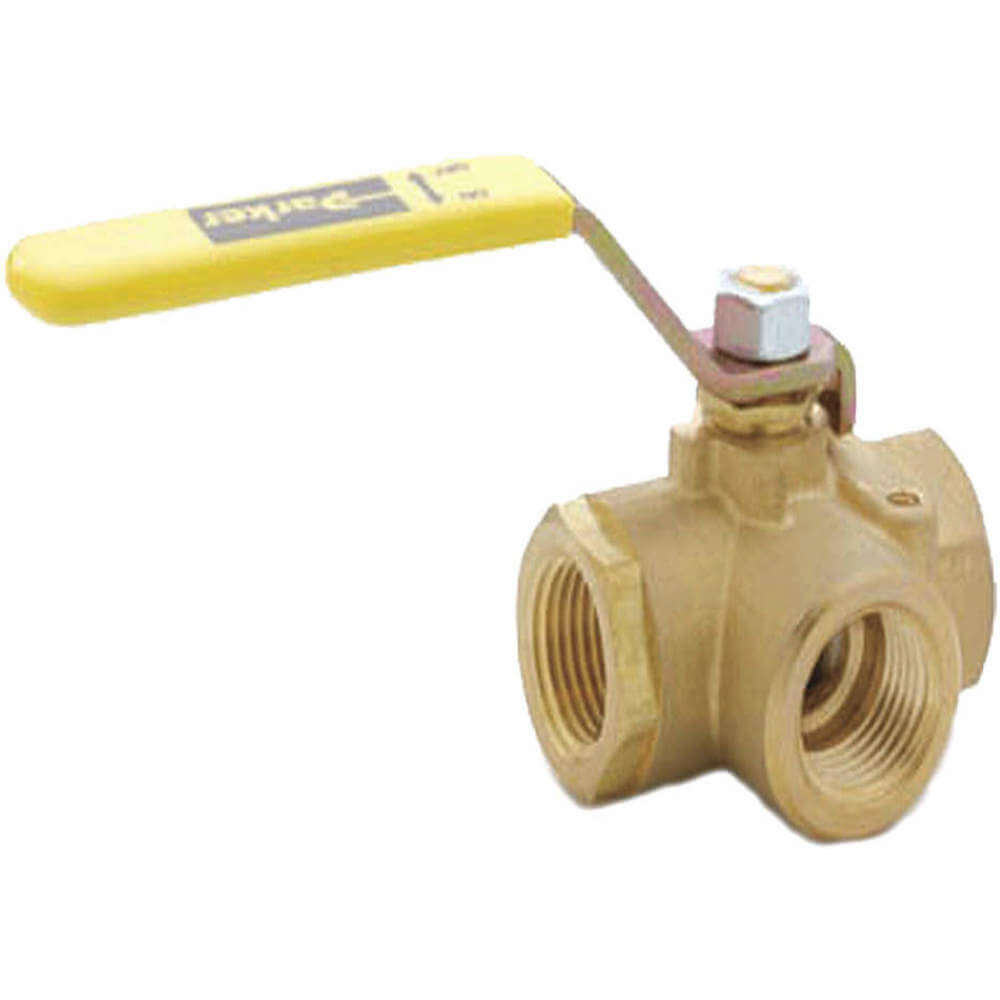

| Item | Ball Valve |
| Ball Finish | Chrome Plated |
| Ball Material | Brass |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Handle Material | Steel |
| Handle Type | Lever |
| Max. Pressure | 400 psi |
| Max. Steam Pressure | 150 psi WSP |
| Number Of Pieces | 2 |
| Number Of Ways | 3 |
| Pipe Size | 1/4" |
| Port | Full |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Brass |
| Stem Type | Blowout Proof |
| Temp. Range | -200°F to +350°F |
| 3-a Compliance | Not Rated |
| Ball Port Style | Full Port |
| Flow Pattern | L Flow |
| Handle | Lever |
| Handle - Locking | Non-Locking |
| Handle Color | Yellow |
| Handle Height | 1.94" |
| Handle Length | 3.96" |
| Included Mounting | Base Pad |
| Inlet | 1/4" FNPT x FNPT x FNPT |
| Inlet Connection Entry | Side |
| Inlet Connection Height | 1.08" |
| Manufacturer Warranty | 1 yr. |
| Max. Media Temperature | 350°F |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 400 psi |
| Max. Pressure (steam) | 400 psi |
| Media Temp. Range | -20°F to 350°F |
| Min. Media Temperature | -20°F |
| Nominal Valve Size | 1/4" |
| Outlet 1 | 1/4" FNPT |
| Outlet 2 | 1/4" FNPT |
| Overall Length | 4.99" |
| Vacuum Service Rating | 29 in. hg |
| Valve Construction | Two-Piece |
| Valve Series | 533 |
| Vented Ball Valve | Non Vented |
| Ship weight (kg) | 0.35 |
| Ship height (cm) | 6.27 |
| Ship length (cm) | 12.67 |
| Ship width (cm) | 4.17 |
| HS code | 8481801085 |
| Country of Origin | US |
