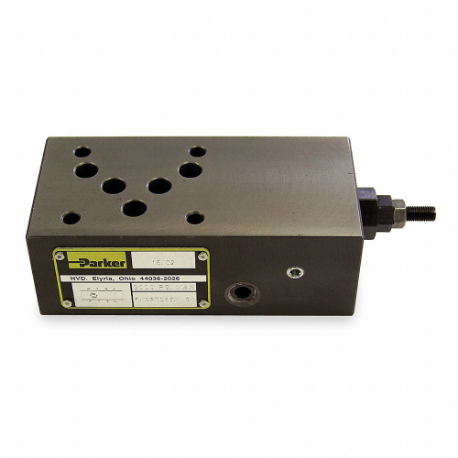

| Item | Relief Valve |
| Adjustable Pressure Range | 150 psi to 3000 psi |
| Adjustment Method | Slotted Screw |
| For Use With | D05 Valves |
| Height | 1.97" |
| Includes Seals | Seals Included |
| Length | 7.35" |
| Max. Flow | 20 GPM |
| Max. Pressure | 5000 psi |
| Operation Type | Pressure Port To Tank |
| Seal Material | Nitrile |
| Seal Type | Nitrile O Ring |
| Type | Hydraulic Relief Valve , Pressure Port To Tank |
| Valve Control | Pressure Relief |
| Width | 2 3/4" |
| Flow Rate - Maximum | 20 GPM |
| Flow Rate - Minimum | 1 GPM |
| Maximum Pressure | 3500 psi |
| Nfpa Size | D05 |
| Operating Temperature - Maximum | 100°F |
| Overall Height | 1.97" |
| Overall Length | 7.35" |
| Overall Width | 2 3/4" |
| Pressure Setting - Maximum | 3000 psi |
| Pressure Setting - Minimum | 150 psi |
| Series | RM3 Series |
| Series | RM Series |
| Standards | ISO 4406 |
| Ship weight (kg) | 3.38 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 18.67 |
| Ship width (cm) | 5 |
| Country of Origin | US |
