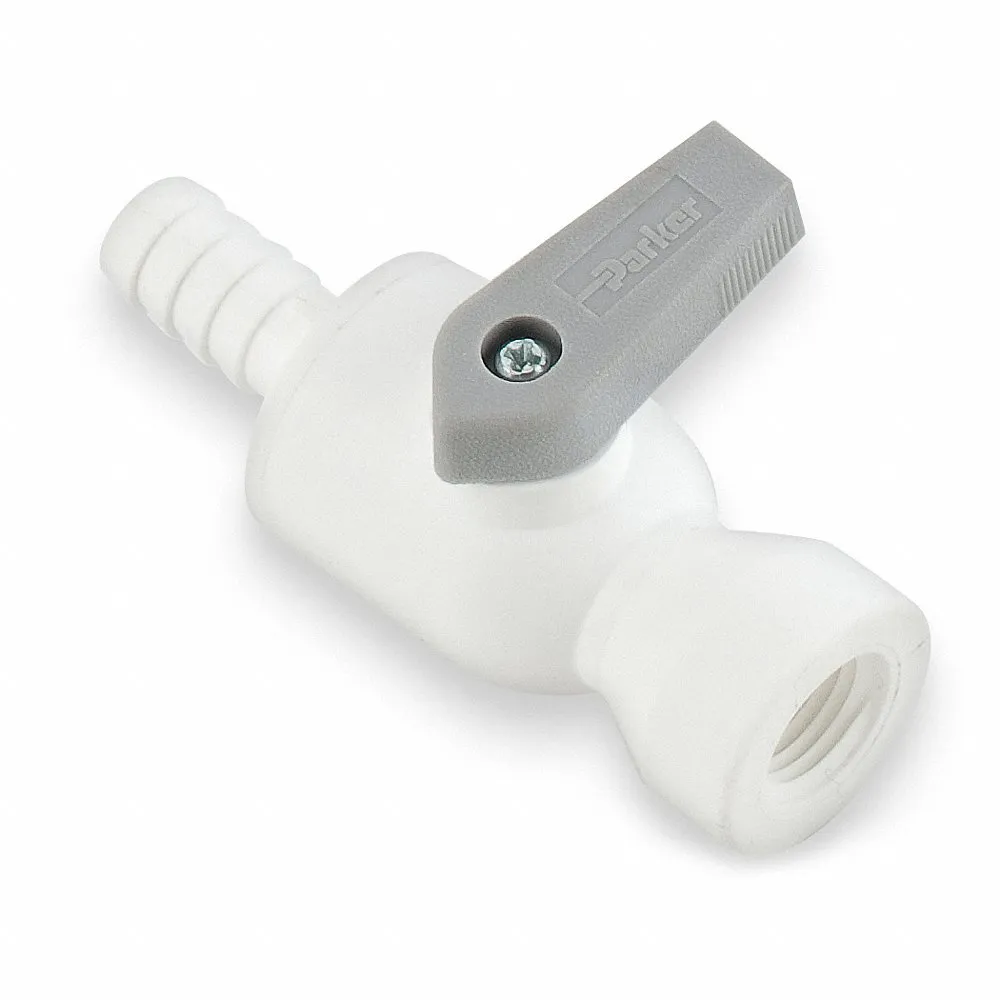

PARKER PBPP4VFC4 Ball Valve, 1/4 Inch Pipe, 1/4 Inch Tube, 150 PSI CWP, 0-212 Deg F
€13.57 /unit
Request a Quote
Payment
Payment
| Item | Ball Valve |
| Ball Material | Polysulfone |
| Ball Port Style | Full Port |
| Body Material | Polypropylene |
| Body Seal Material | EPDM |
| Connection Gender - Side 1 | Male |
| Connection Gender Side 2 | Female |
| Connection Type | Tube x FNPTF |
| Features | Bi-Directional Flow For Maximum Productivity, Built In Liquifit, Low Profile Design Allows For Easy Assembly, Trueseal And Par-Barb Connection |
| For Media | Water |
| Handle Color | Gray |
| Handle Height | 1.41" |
| Handle Material | Acetal |
| Handle Type | Lever |
| Hose I.d. | 1/4" |
| Max. Pressure | 150 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Overall Length | 2 19/25" |
| Pipe Size | 1/4" |
| Port | Full |
| Seat Material | EPDM |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +212°F |
| Tube Size | 1/4" |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Straight |
| Valve Structure | One Piece |
| 3-a Compliance | Meets 3A Sanitary Standards |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/4" |
| Connection Size - Side 2 | 1/4" |
| Connection Type - Side 1 | Barb |
| Connection Type - Side 2 | NPT |
| Handle | Lever |
| Manufacturer Warranty | 1 yr. |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 125 psi |
| Max. Pressure (steam) | 125 psi |
| Media Temp. Range | 0°F to 212°F |
| Nominal Valve Size | 1/4" |
| Nsf Certifications For Food And Drinking Water | NSF 51 |
| Seal Material | EPDM |
| Standards | FDA |
| Stem Material | PSU |
| Valve Construction | One-Piece |
| Vented Ball Valve | Non Vented |
| Ship weight (kg) | 0.02 |
| Ship length (cm) | 7.01 |
| Country of Origin | US |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
16A-SWB16L-RT-T-SS-LD-GR | Ball Valve | €1,828.73 | |
 |
HPBVB16FF | Ball Valve | €2,837.28 | |
 |
FTPPB8VME8 | Ball Valve | €34.02 | |
 |
LFPP8VME8 | Ball Valve | €25.49 | |
|
8A-SWB8L-RT-T-SS-LD-GR | Ball Valve | €1,082.55 | |
 |
LFPP4VAS8 | Ball Valve | €24.45 | |
 |
LFPP4VMC8 | Ball Valve | €26.19 |
