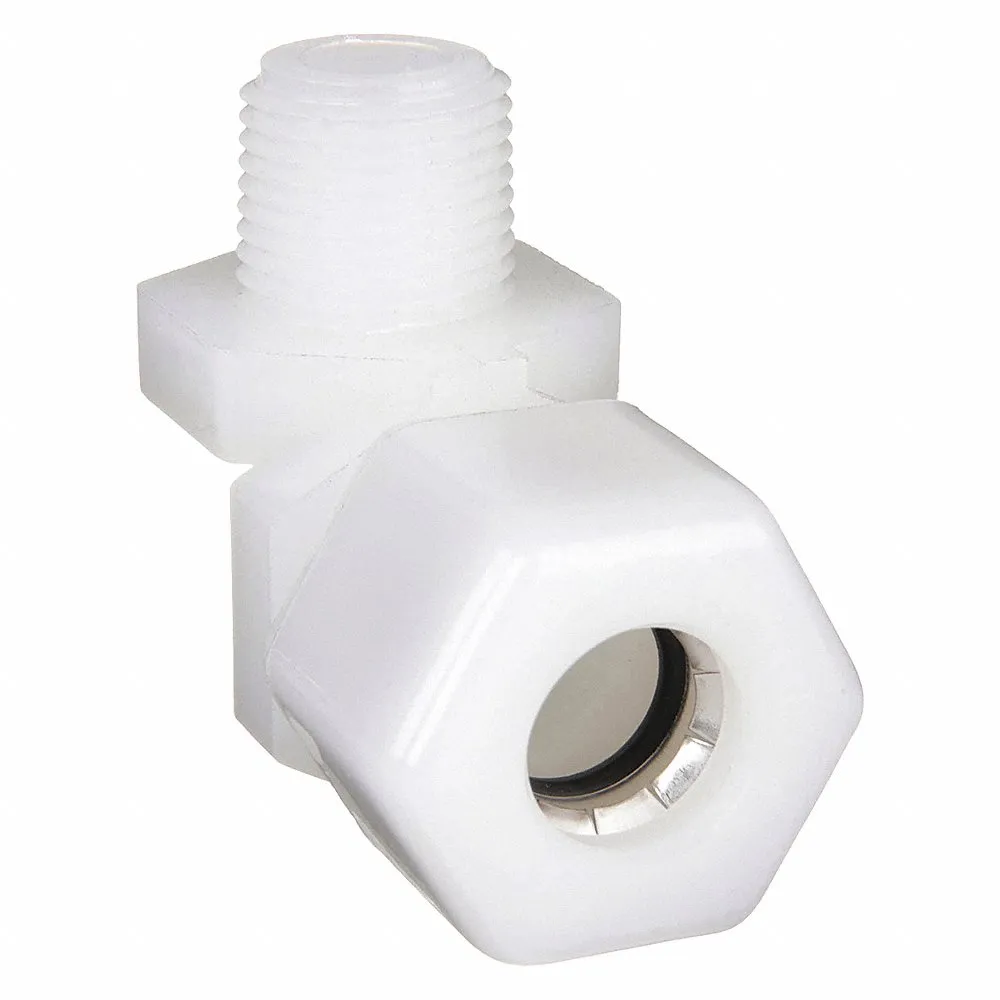

| Item | Compression Fitting |
| Application | Air, Potable Water |
| Basic Pipe Fitting Material | Plastic |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Nylon |
| Color | White |
| Compatible Tube Material | Glass, Thermoplastic |
| Connection Type | Tube To Pipe |
| Fitting Side A Connection Type | Compression |
| Grade | Grade 302 |
| Material | Nylon |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 93°C |
| Min. Operating Temp. | -40°C |
| Pipe Size | 1/4" |
| Ring Material | Stainless Steel |
| Style | Tube To Pipe |
| System Of Measurement | Imperial |
| Tube Outside Dia. | 1/4" |
| Fitting Material | Nylon |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | MNPTF |
| Fitting Side B Pipe Size | 1/4" |
| Hex Size | 3/4" |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 40°F |
| Overall Length | 1 1/16" |
| Series | Fast & Tite |
| Specific Fitting Shape | 90° Elbow Adapter |
| Standards | FDA APPROVED, NSF/ANSI 51 |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 2.7 |
| Ship width (cm) | 1.91 |
| Country of Origin | US |
| Model | Basic Material | Body Material | Compression Thread Size | Connection Type | Hex Size | Max. Operating Pressure | Max. Pressure | Min. Operating Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| N10FC8 | Plastic | Nylon | 1/2" | Compression x FNPT | 1.125" | 50 psi | 50 psi | -40 Deg C | 1 | €8.49 | |
| N4FC2 | Plastic | Nylon | 1/8" | Compression x FNPT | 11/16" | 300 psi | 300 psi | -40 Deg C | 1 | €6.73 | |
| N4FC4 | Plastic | Nylon | 1/4" | Compression x FNPT | 11/16" | 300 psi | 300 psi | -40 Deg C | 1 | €6.30 | |
| N6FC4 | Plastic | Nylon | 1/4" | Compression x FNPT | 1" | 150 psi | 150 psi | -40 Deg C | 1 | €6.73 | |
| N6FC6 | Plastic | Nylon | 3/8" | Compression x FNPT | 1.125" | 150 psi | 150 psi | -40 Deg C | 1 | €6.69 | |
| N6FC8 | Plastic | Nylon | 1/2" | Compression x FNPT | 1.125" | 150 psi | 150 psi | -40 Deg C | 1 | €9.68 | |
| N8FC6 | Plastic | Nylon | 3/8" | Compression x FNPT | 1.125" | 150 psi | 150 psi | -40 Deg C | 1 | €9.94 |
