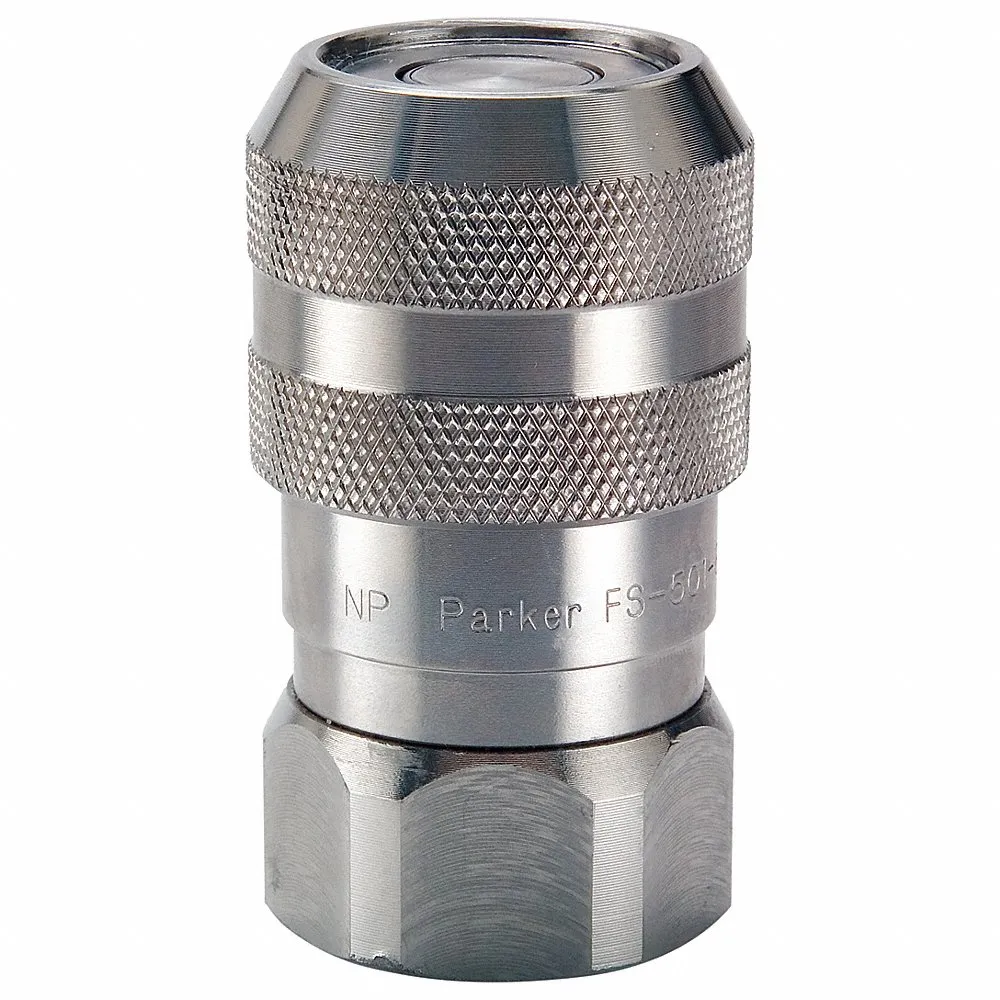

PARKER FS-751-12FP-E5 Hydraulic Quick Connect Hose Coupling, 3/4 Inch Coupling Size, 316 Stainless Steel
€1,266.50 /unit
Request a Quote
Payment
Payment
| Item | Hose Coupling |
| Body Grade | Grade 316 |
| Body Material | Stainless Steel |
| Body Size | 3/4" |
| Connection Type | NPT |
| Coupler Finish | Chrome Plated |
| Coupling Component | Socket |
| Coupling Locking Type | Push To Connect |
| Coupling Size | 3/4" |
| Finish, Coating | Chrome Plated |
| Finish/coating | Chrome Plated |
| Fitting Type | FNPT |
| Hose Fitting Gender | Female |
| Hose Fitting Size | 3/4" |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Length | 3 5/8" |
| Max. Flow Rate | 105.99 LPM |
| Max. Outside Dia. | 1.984" |
| Max. Pressure | 2000 psi |
| Max. Working Pressure | 2000 psi |
| Max. Working Pressure @ 70 Deg. F | 2000 psi |
| Seal Material | Ethylene Propylene |
| Series | FS Series |
| Sleeve Material | Stainless Steel |
| Thread Size | 3/4"-14 |
| Valve Type | Flush Face |
| Max. Working Pressure @ 70 F | 2000 psi |
| Overall Length | 3 5/8" |
| Ship weight (kg) | 0.88 |
| Ship height (cm) | 5.04 |
| Ship length (cm) | 9.21 |
| Country of Origin | US |
