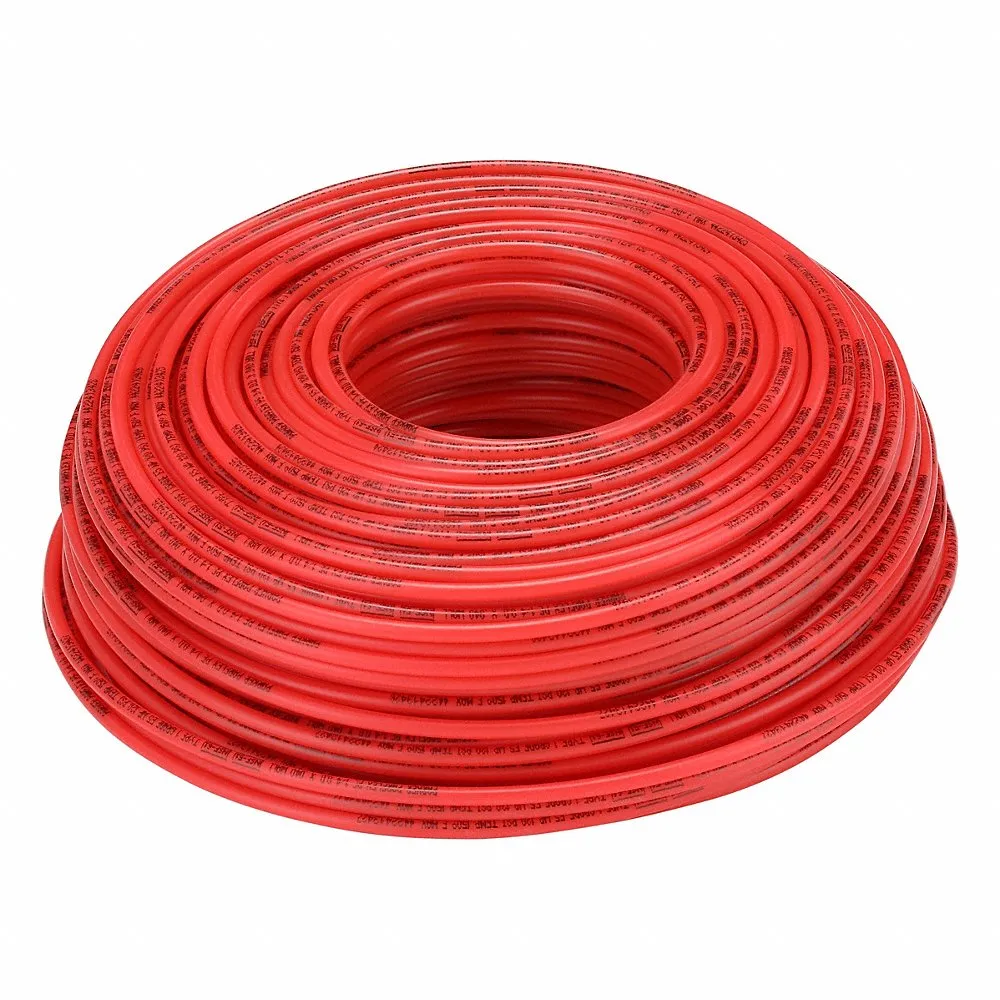

| Item | Tubing |
| Application | Air, Chemical, Fluid , Pneumatics |
| Autoclavable | No |
| Clarity | Opaque |
| Color | Red |
| Features | Made From 100% Virgin Resin Material |
| Fitting Compatibility | Compression, Push-To-Connect |
| Flexibility | Flexible |
| Flow Application | Beverage Dispensers, Chemical Transfer, Low Pressure Pneumatics, Potable Water |
| For Environment | Chemical |
| For Fluid Type | Air, Potable Water, Water |
| For Location | Indoor |
| For Potable Water Use | Yes |
| Jacket Color | No Jacket |
| Material Trade Name | Not Applicable |
| Reinforcement | Not Reinforced |
| Stripe Color | No Stripe |
| System Of Measurement | Inch |
| Tube Form | Coil |
| Bend Radius | 1" |
| Burst Pressure | 480 psi |
| Coil Weight | 5.5 lbs. |
| Hardness | Shore D 45 |
| Industry Application | Pneumatics |
| Inside Diameter | 5/32" |
| Material | Polyethylene |
| Maximum Operating Pressure | 120 psi @ 150°F |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | -80°F |
| Outside Diameter | 1/4" |
| Overall Length | 500 ft. |
| Resistance Properties | Crack Resistant |
| Standards | ASTM D-1248, ASTM D-1693, CFR21 PART 177 COMPLIANT FOR FOOD CONTACT, FDA, NSF 51, NSF 61 |
| Wall Thickness | 0.04" |
| Weight Per Foot | 0.011 lbs.-ft. |
