| Actuator Type | Single Solenoid |
| Application | Assembly Lines, Conveyance, Industrial, Packaging |
| Body Material | Aluminum |
| Body Style | Inline |
| Coefficient Of Volume (cv) | 1.4 |
| Electrical Connection Type | DIN Solenoid Connector |
| For Media | Air |
| Includes Solenoid Coil | Solenoid Coil Included |
| Inlet Connection | NPT |
| Inlet Port Connection Type | NPT |
| Iso Class | Class 4400-A |
| Lubrication | Lubrication Not Required |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure | 20 psi to 145 psi |
| Operating Pressure - Maximum | 145 psi |
| Operating Pressure - Minimum | 20 psi |
| Operating Temperature | 5°F to 120°F |
| Operating Temperature - Maximum | 120°F |
| Operating Temperature - Minimum | 5°F |
| Override | Non-Locking |
| Pilot Connection | 1/4" NPT |
| Pilot Port Connection Size | 1/4" |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Power Consumption | 7.3 W |

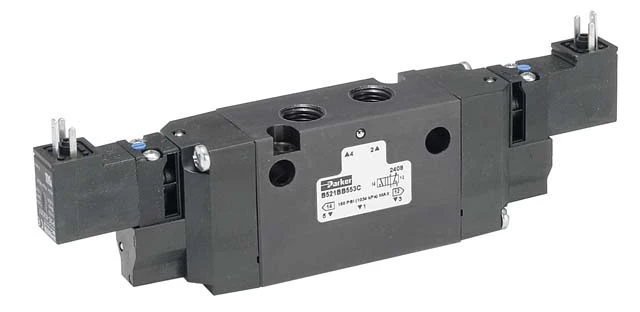

| Product Type | Solenoid Air Control Valve |
| Return Action | Pilot Return |
| Seal Material | Nitrile |
| Series | B5 Series |
| Standards | CE CERTIFIED, CSA CERTIFIED |
| Vacuum Rating | Vacuum Operable |
| Valve Type | Spool |
| Voltage | 12V DC |
| Ways & Positions | Four-Way, Two-Position |
