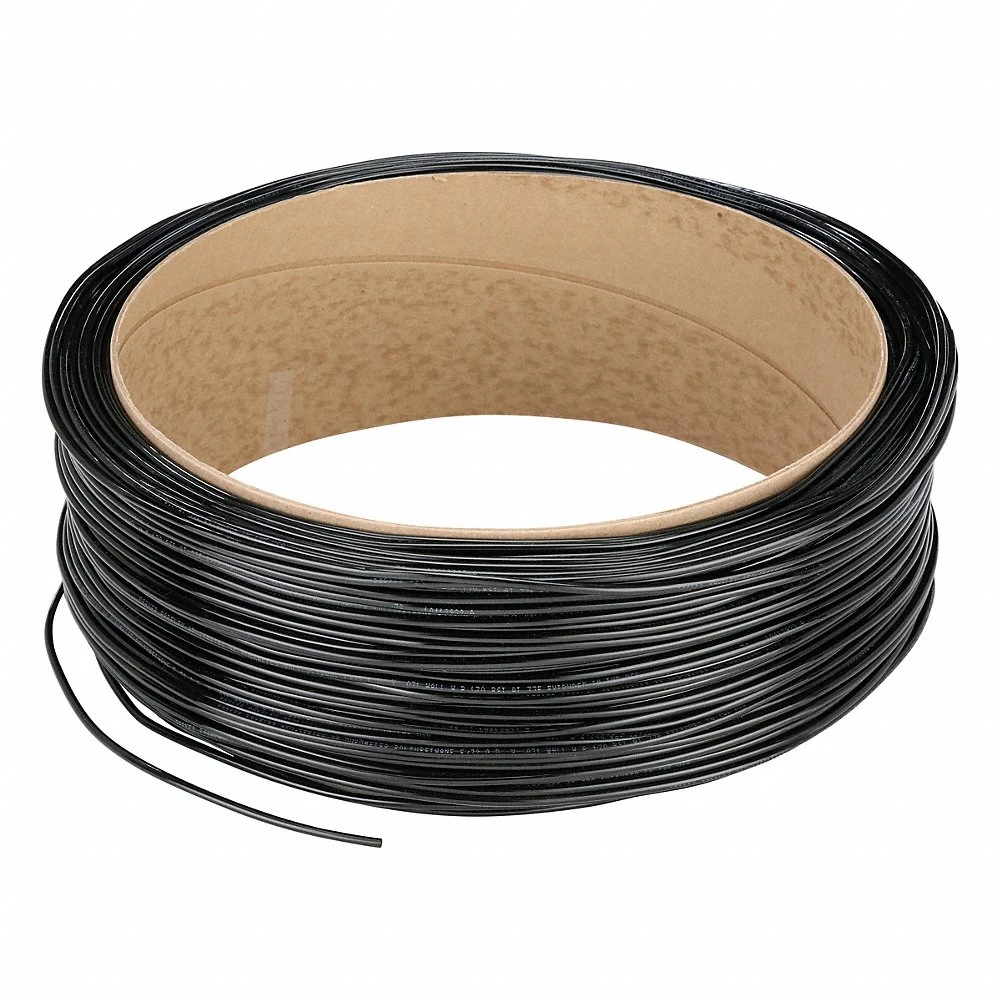

PARKER 95U-2.5-031-BLK-0500 Tubing, Polyurethane, ID. 3/32 Inch, OD. 5/32 Inch, 500 Ft Length, Black
€392.45 /unit
Request a Quote
Payment
Payment
| Item | Tubing |
| Application | Air, Water |
| Autoclavable | No |
| Beverage Food And Water Compatibility | Potable Water |
| Beverage, Food, And Water Compatibility | Potable Water |
| Burst Pressure | 510 psi |
| Clarity | Opaque |
| Color | Black |
| Features | Hydrolytic Stability |
| Fitting Compatibility | Compression, Push To Connect , Compression, Push-To-Connect |
| Flexibility | Flexible |
| Flow Application | Low To Medium Pressure Pneumatics Where Weld Spatter Resistance Is Not Required, Pneumatic Controls, Semiconductor Equipment, Vacuum Equipment |
| Food And Beverage Compatibility | Potable Water |
| Food Application | Beverage |
| For Fluid Type | Air, Water |
| For Location | Indoor, Outdoor , Indoor/Outdoor |
| Hardness | Shore A 90 To 95 |
| Industry Application | Analytical Instrumentation, Pneumatics, Robotics |
| Inside Dia. | 0.094" |
| Jacket Color | No Jacket |
| Jacket Material | N , Not Applicable |
| Length | 500 ft. |
| Material | Polyurethane |
| Material Trade Name | Not Applicable |
| Max. Operating Temp. | 180°F |
| Max. Pressure | 170 psi @ 180°F |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 0.156" |
| Reinforcement | Non Reinforced , Not Reinforced |
| Resistance Properties | Abrasion Resistant, Kink Resistant, Tear Resistant, Wear Resistant |
| Stripe Color | No Stripe |
| System Of Measurement | Inch |
| Tube Form | Coil |
| Vacuum | Vacuum Rated |
| Wall Thickness | 0.031" |
| Coil Weight | 6.2 lbs. |
| Inside Diameter | 3/32" |
| Maximum Operating Pressure | 170 psi @ 180°F |
| Maximum Operating Temperature | 180°F |
| Minimum Operating Temperature | -40°F |
| Outside Diameter | 5/32" |
| Overall Length | 500 ft. |
| Vacuum Rated | Vacuum Rated |
| Weight Per Foot | 0.006 lbs.-ft. |
| Ship weight (kg) | 2.75 |
| Ship length (cm) | 0.4 |
| Ship width (cm) | 0.4 |
| Country of Origin | US |
| Product | Model | Burst Pressure | Color | Hardness | Inside Dia. | Length | Material | Max. Working Pressure @ 70 F | Min. Bend Radius | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NBR-8-062-0050 | 1500 psi | Black | - | 3/8" | 50ft. | Nylon | - | - | €253.40 | |
 |
NNR-8-062-0050 | 1500 psi | Natural | - | 3/8" | 50ft. | Nylon | - | - | €250.83 | |
 |
104-0250031-NT-50 | 945 PSI | Natural | Shore D: 60 | 3/16" | - | PFA Fluoropolymer Tubing | 190 | 1" | €292.46 | |
|
104-0375062-NT-50 | 1280 PSI | Natural | Shore D: 60 | 1/4" | - | PFA Fluoropolymer Tubing | 260 | 3/4" | €676.58 | |
 |
201-0300100-NT-25 | - | Natural | Shore D: 55 to 65 | 1mm | 25ft. | PTFE | 391 | 1-1/2" | €103.71 | |
|
201-0600100-NT-25 | - | Natural | Shore D: 55 to 65 | 4mm | 25ft. | PTFE | 204 | 1-3/4" | €164.30 | |
 |
201-1000100-NT-25 | - | Natural | Shore D: 55 to 65 | 8mm | 25ft. | PTFE | 123 | 2-1/2" | €340.38 |
