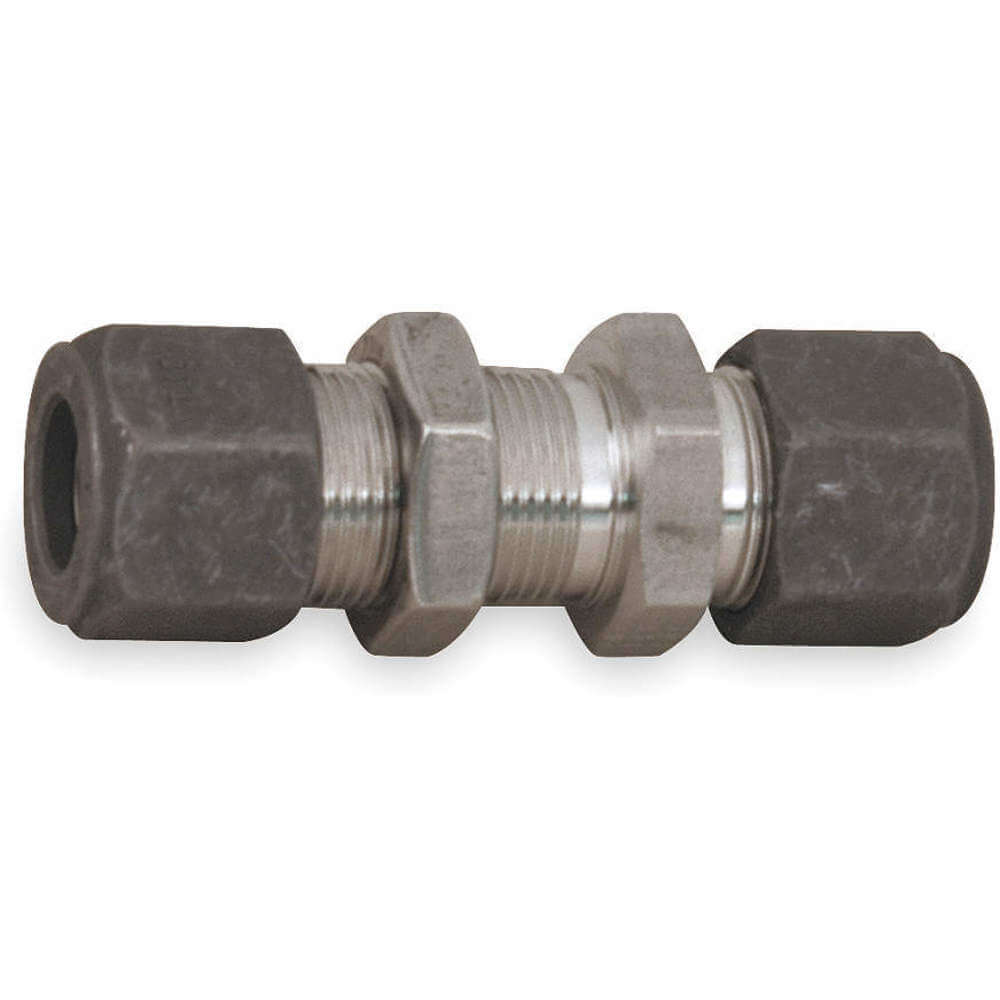

| Item | Compression Fitting |
| Application | Gases, Liquids |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Union |
| Body Material | Stainless Steel |
| Compatible Tube Material | Stainless Steel |
| Compression Thread Size | 3/4"-20 |
| Fitting Side A Connection Type | Compression |
| Fitting Side B Connection Type | Compression |
| Grade | Grade 316 |
| Hex Size | 0.594" |
| Material | Stainless Steel |
| Max. Operating Pressure | 10000 psi |
| Pipe Size | 3/4" |
| Resistance Properties | Corrosion Resistant, Vibration-Resistant |
| Specific Pipe Fitting Shape | Bulkhead Union |
| System Of Measurement | Imperial |
| Temp. Range | -425°F to +1200°F |
| Thread Size | 3/4"-20 |
| Tube Size | 1/2" |
| Compatible Fitting Brands | CPI |
| Fitting Material | Stainless Steel |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Tube Outer Diameter | 1/2" |
| Material Grade | Grade 316 |
| Maximum Operating Pressure | 10000 psi |
| Maximum Operating Temperature | 1200°F |
| Minimum Operating Temperature | 425°F |
| Overall Length | 2 13/16" |
| Series | CPI |
| Specific Fitting Shape | Straight Bulkhead Union |
| Standards | ASME SA-213, ASTM A213, ASTM A249, ASTM A269, MIL-T-8504, MIL-T-8506 |
| Thread Size A | 3/4-20 |
| Thread Size B | 3/4-20 |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.38 |
| Ship length (cm) | 7.14 |
| Ship width (cm) | 2.38 |
| HS code | 7307225000 |
| Country of Origin | US |
| Model | Basic Material | Body Material | Compression Thread Size | Connection Size | Connection Type | Hex Size | Material | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4-2 FBZ-SS | Metal | 316 Stainless Steel | 7/16-20 | 1/4" | Single Ferrule | 1/2" | 316 SS | 9100 psi | €27.34 | |
| 4-4 FBZ-SS | Metal | 316 Stainless Steel | 7/16-20 | 1/4" | Single Ferrule | 9/16" | 316 SS | 7500 psi | €28.38 | |
| 4-6 FBZ-SS | Metal | 316 Stainless Steel | 7/16-20 | - | CPI(TM) x MNPT | 11/16" | - | 7200 psi | €39.72 | |
| 4-8 FBZ-SS | Metal | 316 Stainless Steel | 7/16-20 | - | CPI(TM) x MNPT | 7/8" | - | 6600 psi | €52.58 | |
| 6-4 FBZ-SS | Metal | 316 Stainless Steel | 9/16-20 | - | CPI(TM) x MNPT | 5/8" | - | 7500 psi | €37.13 | |
| 6-6 FBZ-SS | Metal | 316 Stainless Steel | 9/16-20 | - | CPI(TM) x MNPT | 11/16" | - | 7200 psi | €42.07 | |
| 6-8 FBZ-SS | Metal | 316 Stainless Steel | 9/16-20 | - | CPI(TM) x MNPT | 7/8" | - | 6600 psi | €51.61 |
