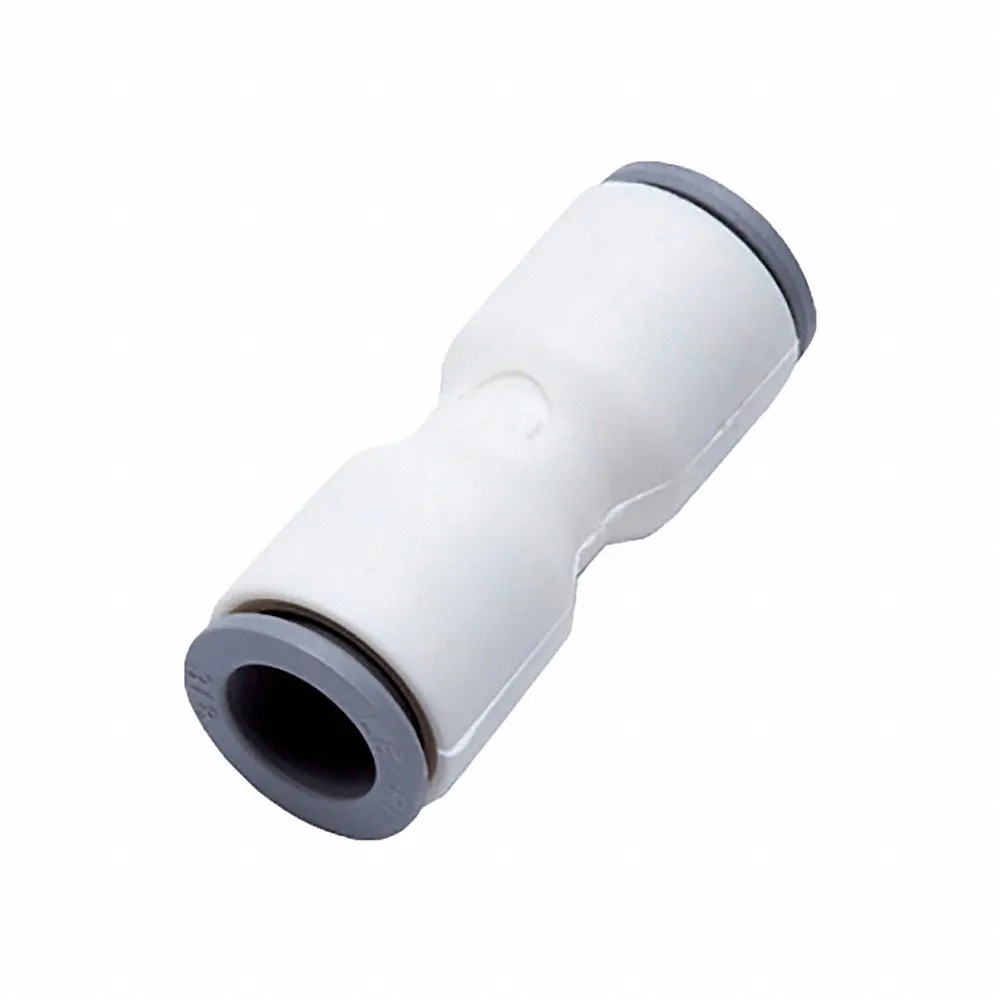

PARKER 6306 08 10WP2 Metric Plastic Push-to-Connect Fitting, Polymer, Push-to-Connect x Push-to-Connect, White
€7.95 /unit
Request a Quote
Payment
Payment
| Item | Fitting |
| Application | Beverages, Food Processing, Medical, Potable Water, Water Purification |
| Color | White |
| Compatible Tube Material | Polyethylene |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 8 mm |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 10 mm |
| Length | 42 mm |
| Material | Polymer |
| Max. Operating Pressure | 230 psi |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | 35°F |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Chemical Resistant |
| Specific Fitting Shape | Straight Union |
| System Of Measurement | Metric |
| Fitting Material | Polymer |
| Maximum Operating Pressure | 230 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 35°F |
| Overall Length | 42 mm |
| Standards | ACS, DM 174, FDA, KTW, NSF 51, NSF/ANSI 61, REACH REG: 1935/2004, ROHS, WRAS |
| Ship weight (kg) | 0.01 |
| Ship length (cm) | 4.2 |
| Country of Origin | FR |
| Product | Model | Price | |
|---|---|---|---|
 |
68PLP-10M-4G | €14.77 | |
|
68PLP-10M-6G | €15.50 | |
 |
66PLP-10M-6G | €29.70 | |
 |
66PLPBH-10M-6G | €25.24 | |
|
66PLP-10M-4G | €32.87 | |
|
68PLP-10M-8G | €18.89 | |
|
68PLP-4M-2G | €7.99 |
