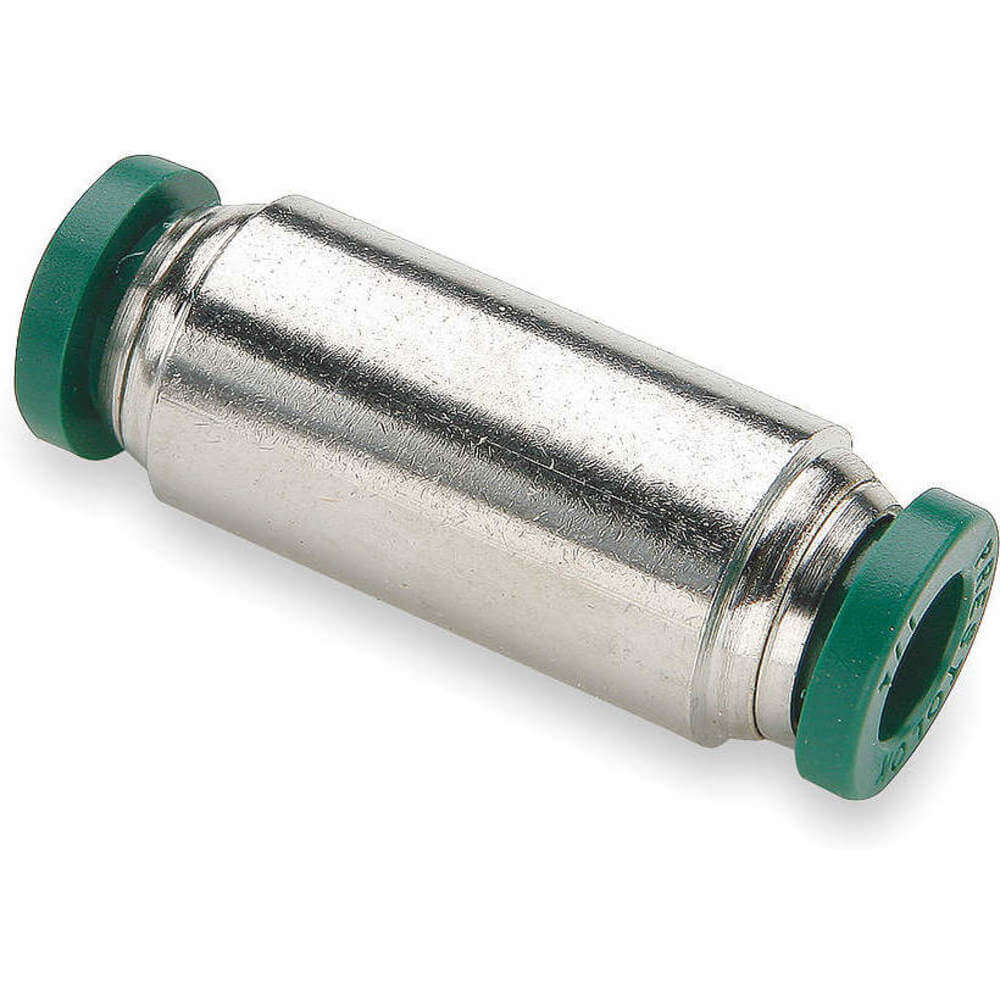

PARKER 62PLP-4-6 Fitting, 1/4 Inch Outside Diameter, Nickel Plated Brass
€18.67 /unit
Request a Quote
Payment
Payment
| Item | Fitting |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Connection Type | BSPP x BSPT x NPTF x UNF |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 93°C |
| Min. Operating Temp. | -18°C |
| Ring Material | Stainless Steel |
| Seal Material | Nitrile |
| Shape | Union |
| Style | Push To Connect |
| Tube Outside Dia. | 1/4" |
| Application | Air, Automotive, Climate Control, End-of-Arm Tooling, Factory Automation, Industrial, Inert Gases, Oil Lines, Packaging, Pneumatics, Robotic Welding, Robotics, Semi-Conductor, Textile, Vacuum Lines |
| Color | Silver |
| Compatible Tube Hardness | 90 Shore A, 95 Shore A |
| Compatible Tube Material | Polyethylene, Polypropylene, Polyurethane, Rigid Nylon, Semi-Rigid Nylon |
| Finish/coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | Push-to-Connect |
| Fitting Side B Tube Outer Diameter | 3/8" |
| Includes Pre-applied Thread Sealant | No |
| Material Grade | C36000 |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 0°F |
| Overall Length | 1 21/32" |
| Release Ring Color | Black |
| Release Ring Material | Nitrile Rubber |
| Release Type | Button |
| Resistance Properties | Chemical Resistant |
| Series | Prestolok |
| Specific Fitting Shape | Unequal Union |
| Standards | UL94 V-0 |
| System Of Measurement | Imperial |
| Thread Sealant Type | Acrylic |
| Vacuum Rating | 28 in. hg |
| Ship weight (kg) | 0.04 |
| Ship length (cm) | 4.21 |
| Country of Origin | US |
| Product | Model | Body Material | Max. Operating Pressure | Min. Operating Temp. | Shape | Style | Tube Outside Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
4-1/4PLPHBF4-B | Nickel Plated Brass | 300 psi | -18 Deg C | Connector | Tube to Pipe | 1/4" | 10 | - | RFQ
|
 |
211P-8 | Brass | 1000 psi | -53 Deg C | Square Head Plug | Male Pipe | - | 1 | €12.06 | |
 |
W169PLP-2-1 | Nickel Plated Brass | 300 psi | -18 Deg C | 90 Deg Elbow Swivel | Tube to Pipe | 1/8" | 1 | €15.27 | RFQ
|
 |
W172PLP-4-6 | Nickel Plated Brass | 300 psi | -18 Deg C | Branch Tee | Tube to Pipe | 1/4" | 1 | €14.22 | RFQ
|
 |
W68PLP-3-2 | Nickel Plated Brass | 300 psi | -18 Deg C | Connector | Tube to Pipe | 3/16" | 1 | €8.18 | RFQ
|
|
W68PLP-3-4 | Nickel Plated Brass | 300 psi | -18 Deg C | Connector | Tube to Pipe | 3/16" | 1 | €10.82 | RFQ
|
 |
W68LF-6-4R | Nickel Plated Brass | 300 psi | -18 Deg C | Connector | Tube to Pipe | 3/8" | 1 | €15.74 | RFQ
|
