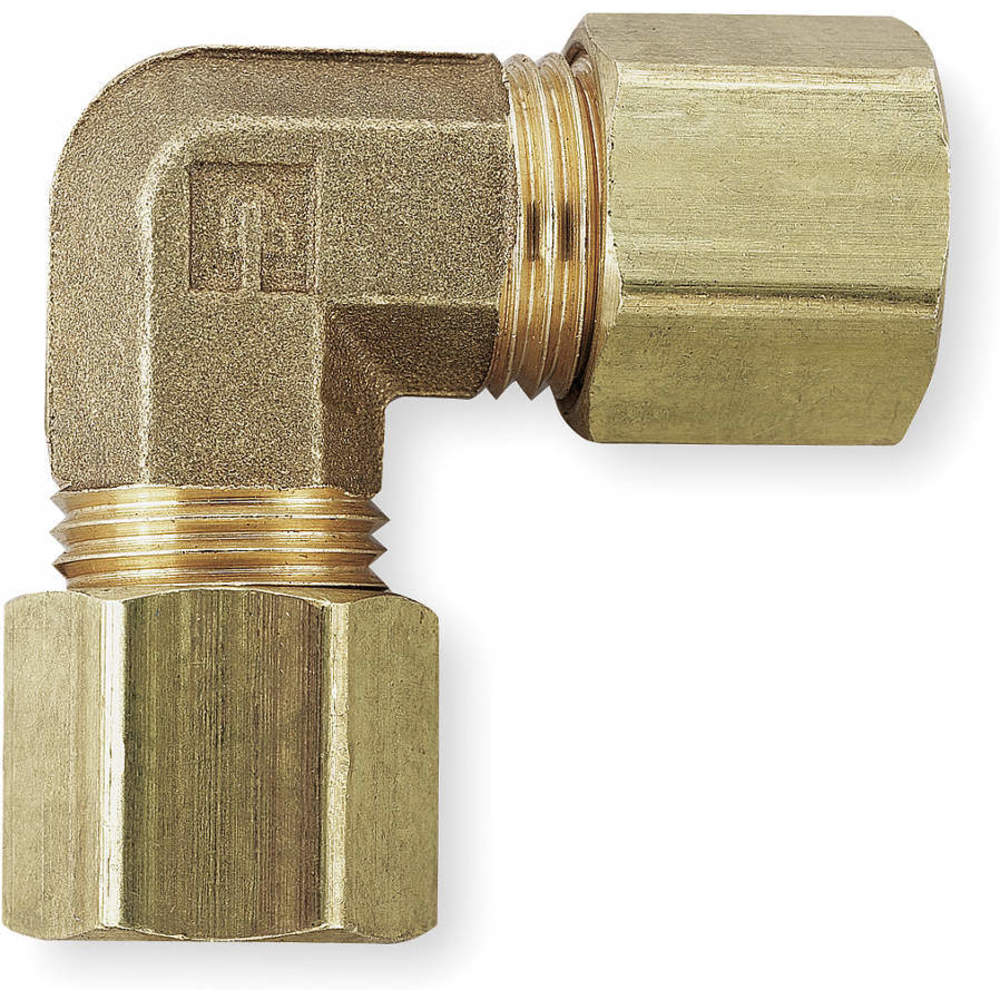

| Item | Compression Fitting |
| Basic Material | Metal |
| Body Material | Forged Brass |
| Connection Type | Compression |
| Fitting Material | Brass |
| Max. Operating Pressure | 200 psi |
| Max. Operating Temp. | 121°C |
| Max. Pressure | 200 psi |
| Min. Operating Temp. | -54°C |
| Nut Material | Brass |
| Style | Tube To Tube |
| System Of Measurement | Imperial |
| Temp. Range | -65°F to +250°F |
| Thread Type | NPTF |
| Tube Outside Dia. | 1/2" |
| Tube Size | 1/2" |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/2" |
| Maximum Operating Pressure | 750 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 65°F |
| Overall Length | 1 11/32" |
| Series | Compression |
| Specific Fitting Shape | 90° Elbow |
| Standards | SAE J512, UL |
| Thread Size A | 11/16"-20 |
| Thread Size B | 11/16"-20 |
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 3.41 |
| Ship width (cm) | 8.89 |
| HS code | 7412200035 |
| Country of Origin | US |
| Model | Basic Material | Body Material | Compression Thread Size | Connection Type | Hex Size | Max. Operating Pressure | Max. Pressure | Min. Operating Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 60C-12 | Metal | Brass | - | Compression | - | 100 psi | 75 to 400 psi | -54 Deg C | 10 | €27.28 | |
| 60C-2 | Metal | Brass | - | Compression | - | 400 Psi | 75 to 400 psi | -54 Deg C | 10 | €6.45 | |
| 60C-3 | Metal | Brass | - | Compression | - | 400 Psi | 75 to 400 psi | -54 Deg C | 10 | €5.95 | |
| 60C-5 | Metal | Brass | - | Compression | - | 300 psi | 75 to 400 psi | -54 Deg C | 10 | €7.70 | |
| 60PT-10 | Plastic | Acetal | - | Compression | - | 150 psi | 75 to 400 psi | -54 Deg C | 10 | €12.76 | |
| 60PT-4 | Plastic | Acetal | - | Compression | - | 300 psi | 300 psi | -54 Deg C | 10 | €6.60 | |
| 60PT-5 | Plastic | Acetal | - | Compression | - | 300 psi | 300 psi | -54 Deg C | 10 | €9.45 |
